Question: We have two push buttons A and B . Design a 3 - digit BCD counter that: counts from 0 0 0 to 9 9

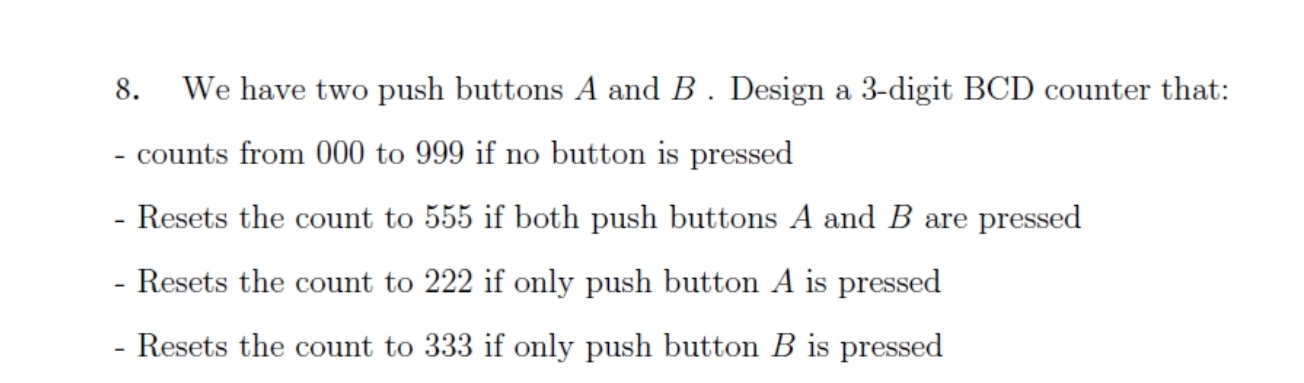

We have two push buttons A and B. Design a 3-digit BCD counter that:
counts from 000 to 999 if no button is pressed
Resets the count to 555 if both push buttons A and B are pressed
Resets the count to 222 if only push button A is pressed
Resets the count to 333 if only push button B is pressed
We have two push buttons A and B . Design a 3 -
