Question: write a matlab code to find a theta, velocity and acceleration of each link. L 1 fixed link, non horizontal - L 1 x =

write a matlab code to find a theta, velocity and acceleration of each link.

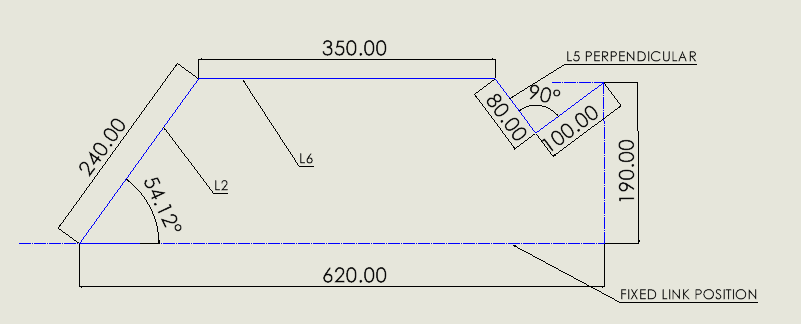

L1 fixed link, non horizontal - L1x =620 mm, L1y =190 mm
L2-240 mm
L3-350 mm
L4-128 mm
\theta 2=54.12\deg ,
\omega 2=-25 rad/sec,
\alpha 2=-15 rad/sec2
.
 write a matlab code to find a theta, velocity and acceleration
