For the control system shown in Fig.3.20: (a) design a PID control $G_{c}(s)$ such that the dominant
Question:
For the control system shown in Fig.3.20:
(a) design a PID control $G_{c}(s)$ such that the dominant closed-loop poles located at $s=-1$ $\pm j 1$.
(b) select $a=0.6$ for the PID controller and find the values of $K$ and $b$
(c) root-locus plot using MATLAB.

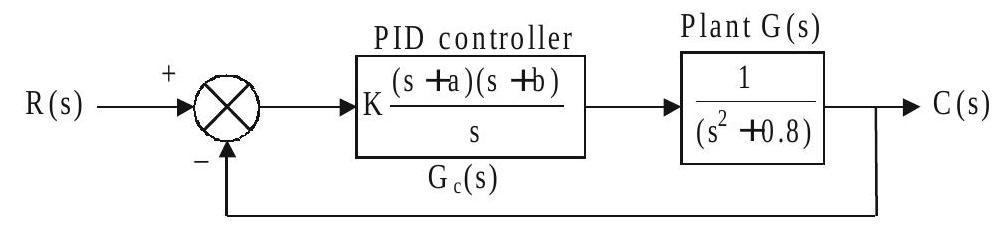

Fig. P 3. 20
Step by Step Answer:
