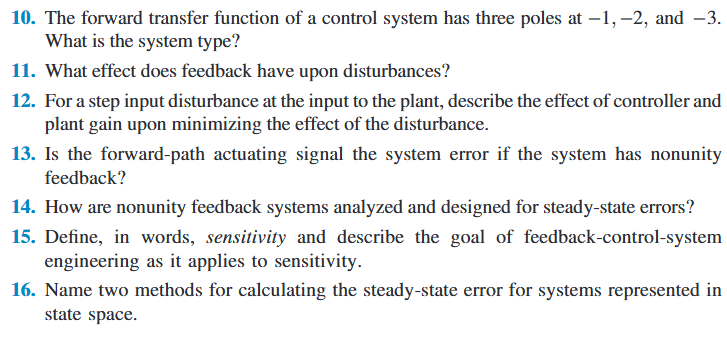

Question: 1 0 . The forward transfer function of a control system has three poles at ( - 1 , - 2 ) ,

10 .

The forward transfer function of a control system has three poles at

\ (- 1, - 2 \),

and

- 3 .

What is the system type?

11 .

What effect does feedback have upon disturbances?

12 .

For a step input disturbance at the input to the plant, describe the effect of controller and plant gain upon minimizing the effect of the disturbance.

13 .

Is the forward

-

path actuating signal the system error if the system has nonunity feedback?

14 .

How are nonunity feedback systems analyzed and designed for steady

-

state errors?

15 .

Define, in words, sensitivity and describe the goal of feedback

-

control

-

system engineering as it applies to sensitivity

.

16 .

Name two methods for calculating the steady

-

state error for systems represented in state space.

can you help me with this hw plsss

1 0 . The forward transfer function of a control

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

The forward transfer function of a control system has three poles at -1; -2; and -3. What is the system type?

A) The second order multistate separation process has the following transfer function: G(s)=(5s+1)(s+2)10 (i) Determine the poles of the transfer function. (ii) Determine the gain and time constant...

Lab Experiment 6: Implementing a proportional Control system using MATLAB and Arduino Nano. Objectives: Students will be able to Regulate a system using a proportional control technique. Proportional...

For the control for the AFTI - 1 6 aircraft in Prob. 1 of HW# 5 , combining part ( a ) and part ( b ) , compute the controller's transfer function of the dynamic compensator. Use Matlab to plot the...

(b) (c) (d) Explain the term limiting error. In a multiple range instrument it is always advisable to take a reading where the indication is near the full scale: justify. (4 marks) The resistance...

The figure below is a pole-zero plot of any real system H(z). (30) j (0.8 + j0.1) X 1 1) Find the exact Transfer function H(z) of the system when H (0 = 0) = 1. (15) (Hint: Construct a Transfer...

I shared the values given for the process control experiment conducted in the chemical engineering laboratory. I need to make the desired values in matlab, can you help me for the report? Table 1....

B-2-13 I hope to pay attention to homework, write and draw in clear handwriting, and use geometric drawing tools for mathematical shapes and representations B-2-8. Obtain a state-space representation...

Given that the transfer function of a control system is given by the equation below, complete the following tasks: 2s+6 G(s) = %3D s2 +5s+6 Note: Assume zero initial conditions a). Plot the poles and...
