Question: 1 1 - 2 1 . Determine the maximum force P that can be applied to the rod if it is made of material having

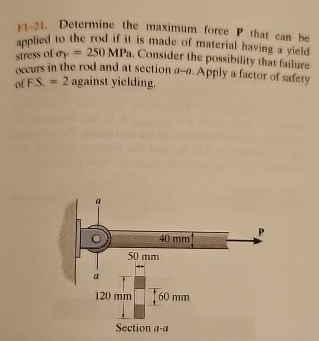

11-21. Determine the maximum force P that can be
applied to the rod if it is made of material having a yield
stress of Y=250MPa. Consider the possibility that failure
occurs in the rod and at section a-a. Apply a factor of safety
of F.S.=2 against yielding.
1 1 - 2 1 . Determine the maximum force P that

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
