Question: 1 ) A control system has the structure shown in figure below. Determine the gain ( ( mathrm { K } )

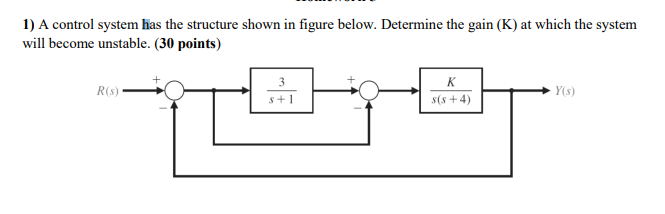

1) A control system has the structure shown in figure below. Determine the gain \((\mathrm{K})\) at which the system will become unstable. (\(\mathbf{30}\) points)
1 ) A control system has the structure shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
