Question: 1) Construct an Activity on Node (AON) network diagram based on the activity description below. 2) On the diagram, compute the ES, EF, LS, LF,

1) Construct an Activity on Node (AON) network diagram based on the activity description below. 2) On the diagram, compute the ES, EF, LS, LF, and the slack for each activity.

1) Construct an Activity on Node (AON) network

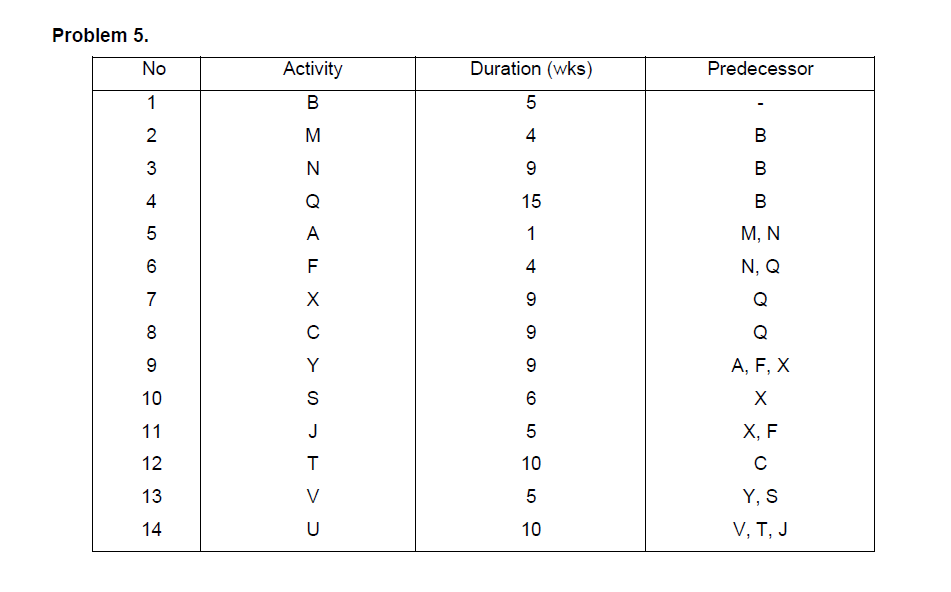

Problem 5. No Activity Duration (wks) Predecessor 1 5 2 M 4 B 3 N 9 B B 4 15 5 A 1 M, N N, Q 6 F 4 7 9 Q 8 00 9 Q 9 Y 9 A, F, X 10 S 6 11 J 5 X, F 12 T 10 13 V 5 Y, S V, T, J 14 U 10
