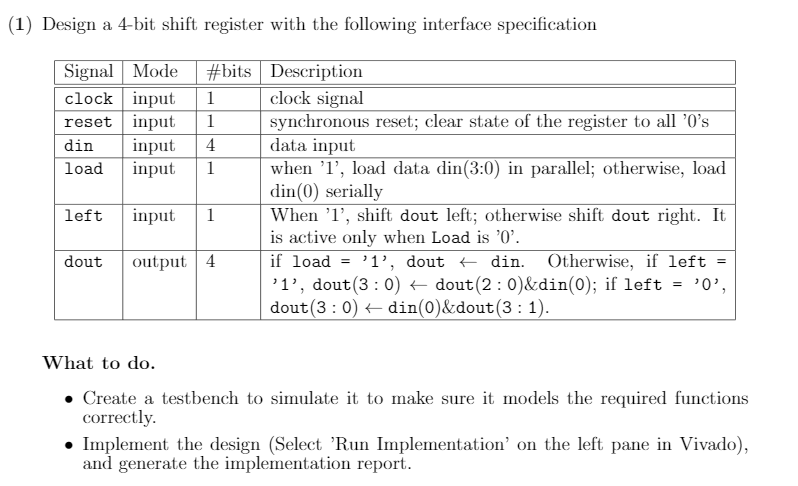

(1) Design a 4-bit shift register with the following interface specification Signal Mode #bits Description clock input 1 clock signal reset input 1 synchronous reset; clear state of the register to all O's din input 4 data input load input 1 when 'l', load data din(3:0) in parallel; otherwise, load din(0) serially left input 1 When '1', shift dout left; otherwise shift dout right. It is active only when Load is 'O'. dout output 4 if load '1', dout + din. Otherwise, if left = '1', dout(3:0) + dout(2:0)&din(0); if left '0', dout(3:0) + din(0)&dout(3:1). What to do. Create a testbench to simulate it to make sure it models the required functions correctly. Implement the design (Select 'Run Implementation on the left pane in Vivado), and generate the implementation report
