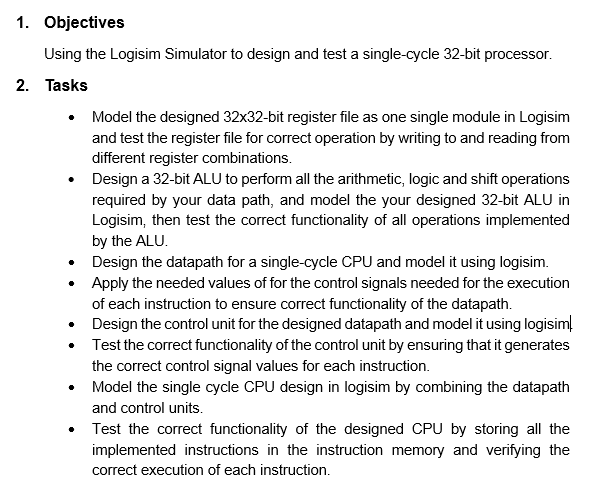

1. Objectives Using the Logisim Simulator to design and test a single-cycle 32-bit processor 2. Tasks Model the designed 32x32-bit register file as one single module in Logisim and test the register file for correct operation by writing to and reading from different register combinations Design a 32-bit ALU to perform all the arithmetic, logic and shift operations required by your data path, and model the your designed 32-bit ALU in Logisim, then test the correct functionality of all operations implemented by the ALU Design the datapath for a single-cycle CPU and model it using logisinm. Apply the needed values of for the control signals needed for the execution of each instruction to ensure correct functionality of the datapath. Design the control unit for the designed datapath and model it using logisim. Test the correct functionality of the control unit by ensuring that it generates the correct control signal values for each instruction. Model the single cycle CPU design in logisim by combining the datapath and control units Test the correct functionality of the designed CPU by storing all the implemented instructions in the instruction memory and verifying the correct execution of each instruction. 1. Objectives Using the Logisim Simulator to design and test a single-cycle 32-bit processor 2. Tasks Model the designed 32x32-bit register file as one single module in Logisim and test the register file for correct operation by writing to and reading from different register combinations Design a 32-bit ALU to perform all the arithmetic, logic and shift operations required by your data path, and model the your designed 32-bit ALU in Logisim, then test the correct functionality of all operations implemented by the ALU Design the datapath for a single-cycle CPU and model it using logisinm. Apply the needed values of for the control signals needed for the execution of each instruction to ensure correct functionality of the datapath. Design the control unit for the designed datapath and model it using logisim. Test the correct functionality of the control unit by ensuring that it generates the correct control signal values for each instruction. Model the single cycle CPU design in logisim by combining the datapath and control units Test the correct functionality of the designed CPU by storing all the implemented instructions in the instruction memory and verifying the correct execution of each instruction
