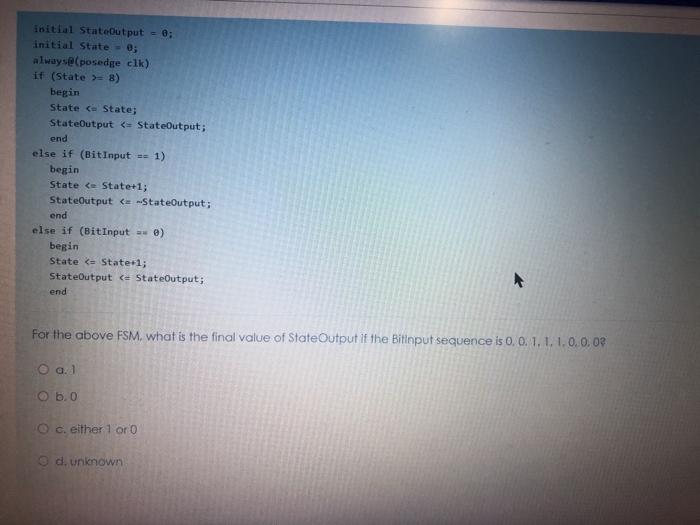

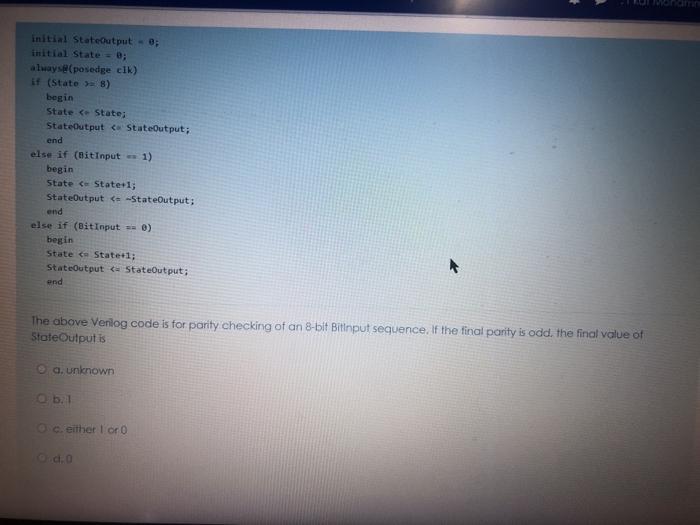

Question: 10 13 14 16 initial StateOutput - 0; initial State = 0; always@(posedge clk) if (State) 8) begin State . State; StateOutput = 8) begin

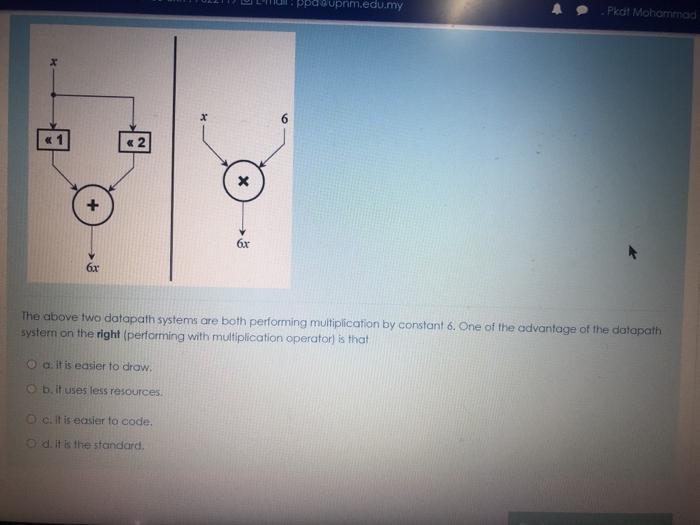

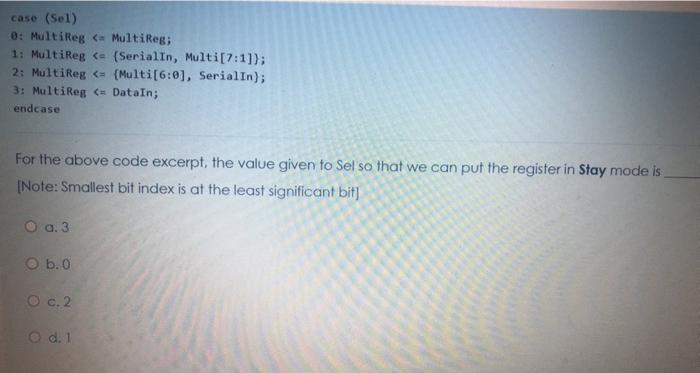

initial StateOutput - 0; initial State = 0; always@(posedge clk) if (State) 8) begin State . State; StateOutput = 8) begin State Ce State; StateOutput

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Draw the state diagram of the machine described by the following Verilog module: module state_machine(y_out, x_in, clk, reset); output reg y_out; input x_in, clk, reset; parameter s0 = 2b00, s1 =...

Assignment: I have made a change in the testbench which leads to a number of incorrect outcomes. a) First run the simulation in EDA playground or ModelSim and check the result in the log window....

I need these fix the first mode isn't showing on the opcode and i need a ALC for the opcode and enable to go to four segment and led display. the input are a [ 0 : 7 ] and b [ 8 : 1 6 ] . module...

I ' m trying to complete this prompt: "Create a Reaction Time Monitor ( RTM ) that can indicate how quickly an user can respond to a stimulus. In operation, the RTM is initialized when a start button...

Please write a testbench code that simulates pressing two random number buttons once each, as well as pressing the left and right shift buttons once each. ` ` ` module LCD _ control Ier ( rst , clk ,...

CODE IS EASY, just need to confirm and double check. Will upvote! I have a verilog code on visual studio. I am using this code, because it is a similar task. Though some specifications are different....

verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code verilog code...

/ / testbench.sv module fsm _ tb; reg clk; reg rst; reg A; reg [ 1 : 0 ] PS _ LOAD; wire z; wire [ 1 : 0 ] NS; fsm uut ( . clk ( clk ) , . rst ( rst ) , . A ( A ) , . PS _ LOAD ( PS _ LOAD ) , . Z (...

Why doesn't my code load anything onto the registers. module Control _ Circuit ( input clk , input rst , input [ 1 5 : 0 ] instruction, output [ 7 : 0 ] Rin, output [ 7 : 0 ] Rout, output [ 1 : 0 ]...
