Question: 2 . [ 3 5 pts ] a . [ 2 0 pts ] Design a full subtractor ( which is similar to a full

2.[35 pts]

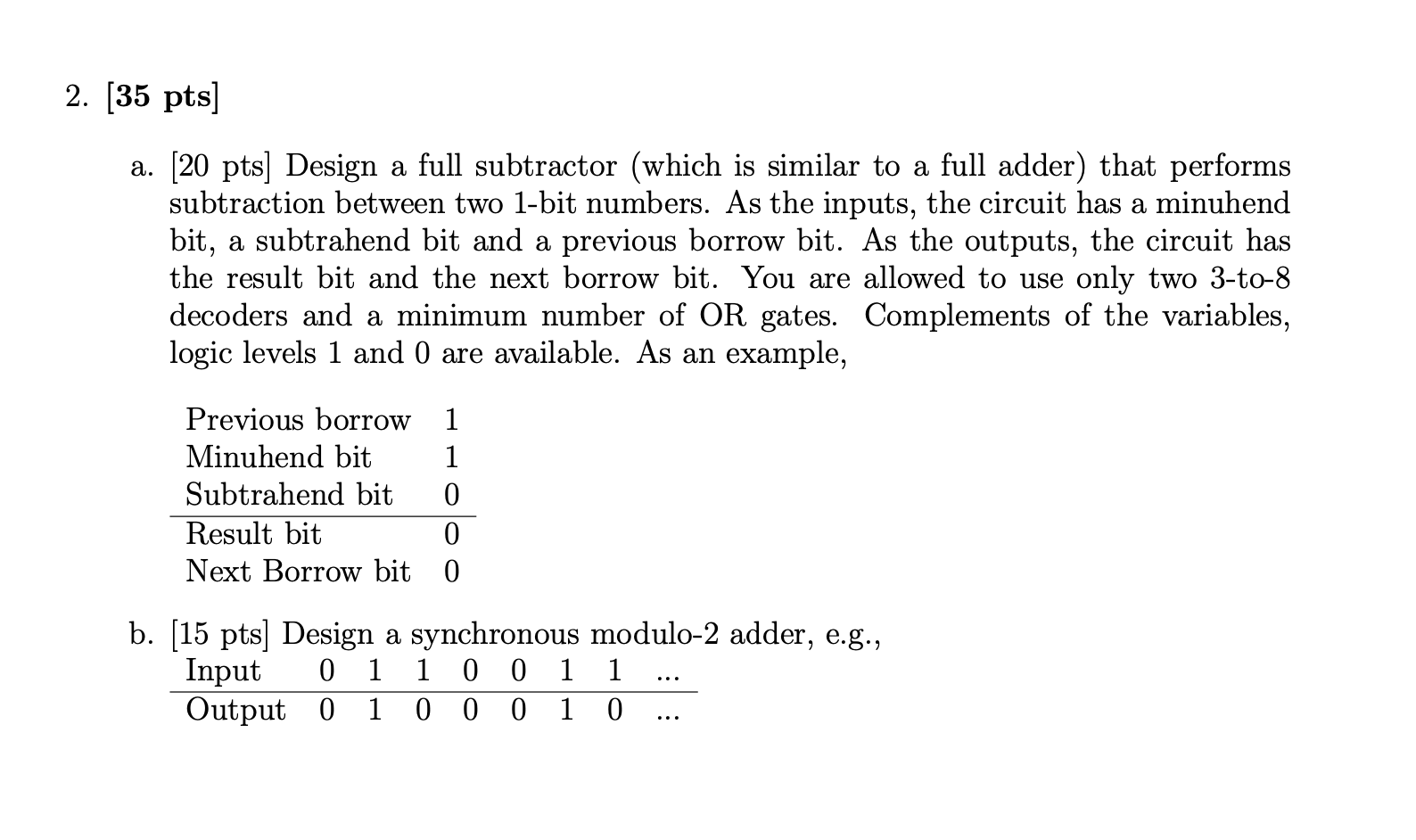

a.[20 pts] Design a full subtractor (which is similar to a full adder) that performs subtraction between two 1-bit numbers. As the inputs, the circuit has a minuhend bit, a subtrahend bit and a previous borrow bit. As the outputs, the circuit has the result bit and the next borrow bit. You are allowed to use only two 3-to-8 decoders and a minimum number of OR gates. Complements of the variables, logic levels 1 and 0 are available. As an example,
b.[15 pts] Design a synchronous modulo-2 adder, e.g.,
2 . [ 3 5 pts ] a . [ 2 0 pts ] Design a full
