Question: ( 3 0 points ) Below is the wav form display for a logic diagram with four inputs A , B , C , D

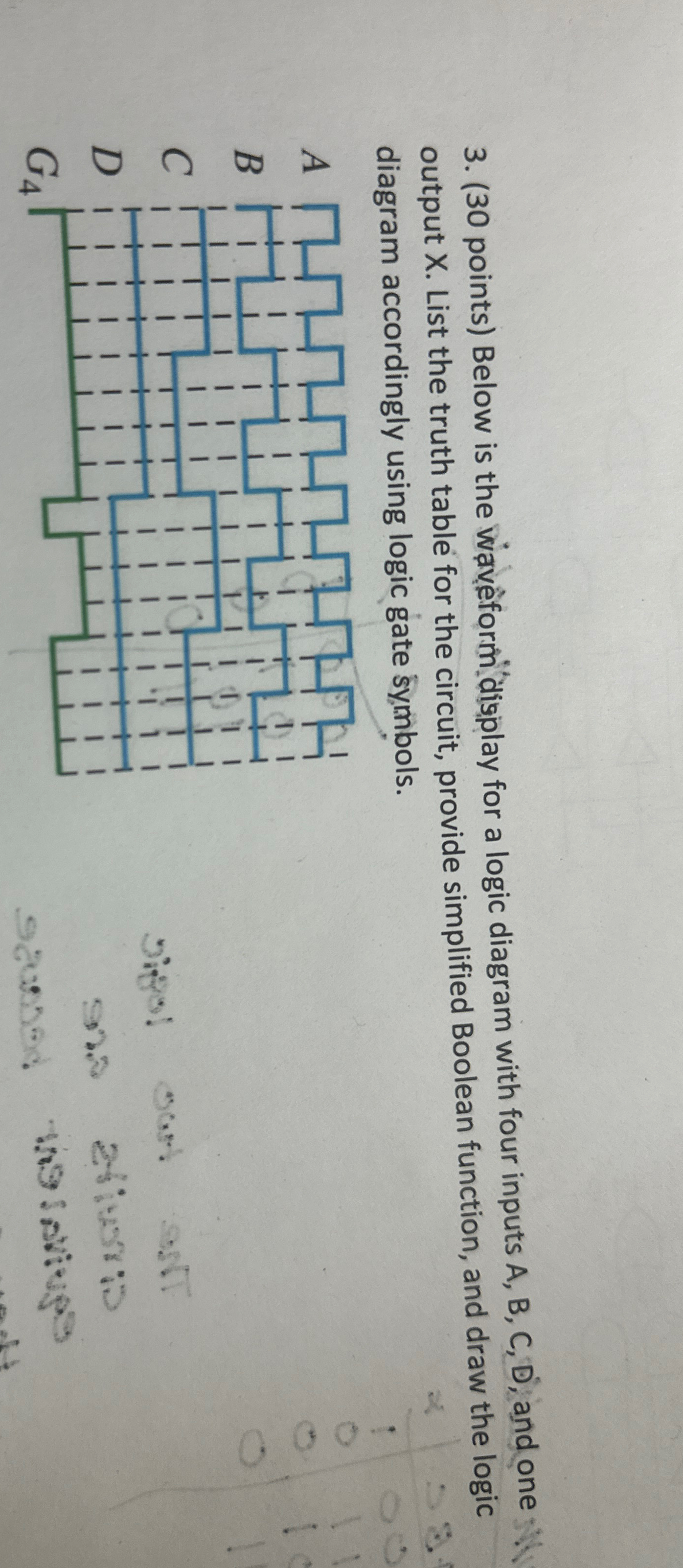

(30 points) Below is the wavform display for a logic diagram with four inputs A,B,C,D, and one output x. List the truth table for the circuit, provide simplified Boolean function, and draw the logic diagram accordingly using logic gate symbols.
( 3 0 points ) Below is the wav form display for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
