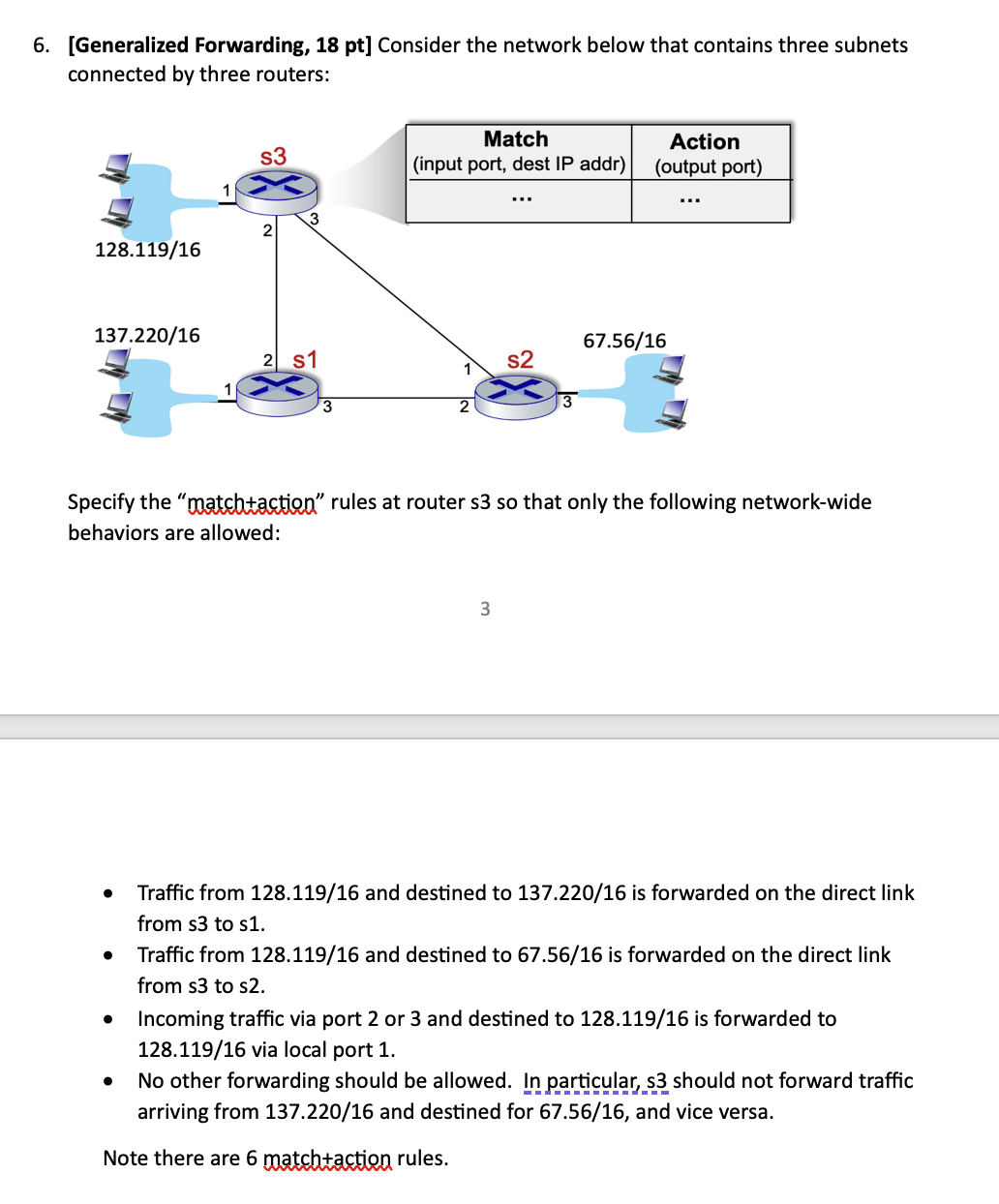

6.[Generalized Forwarding, 18 pt] Consider the network below that contains three subnets connected by three routers:
Specify the "match+action" rules at router s3 so that only the following network-wide behaviors are allowed:
- Traffic from \(128.119/16\) and destined to 137.220/16 is forwarded on the direct link from s 3 to s 1.
- Traffic from 128.119/16 and destined to 67.56/16 is forwarded on the direct link from s3 to s2.
- Incoming traffic via port 2 or 3 and destined to \(128.119/16\) is forwarded to 128.119/16 via local port 1.
- No other forwarding should be allowed. In particular, s3 should not forward traffic arriving from 137.220/16 and destined for 67.56/16, and vice versa.
Note there are 6 match+action rules.
