Question: A frame and a loading are shown. Note that = 9 0 Determine the internal forces at point J when P = 1 . 8

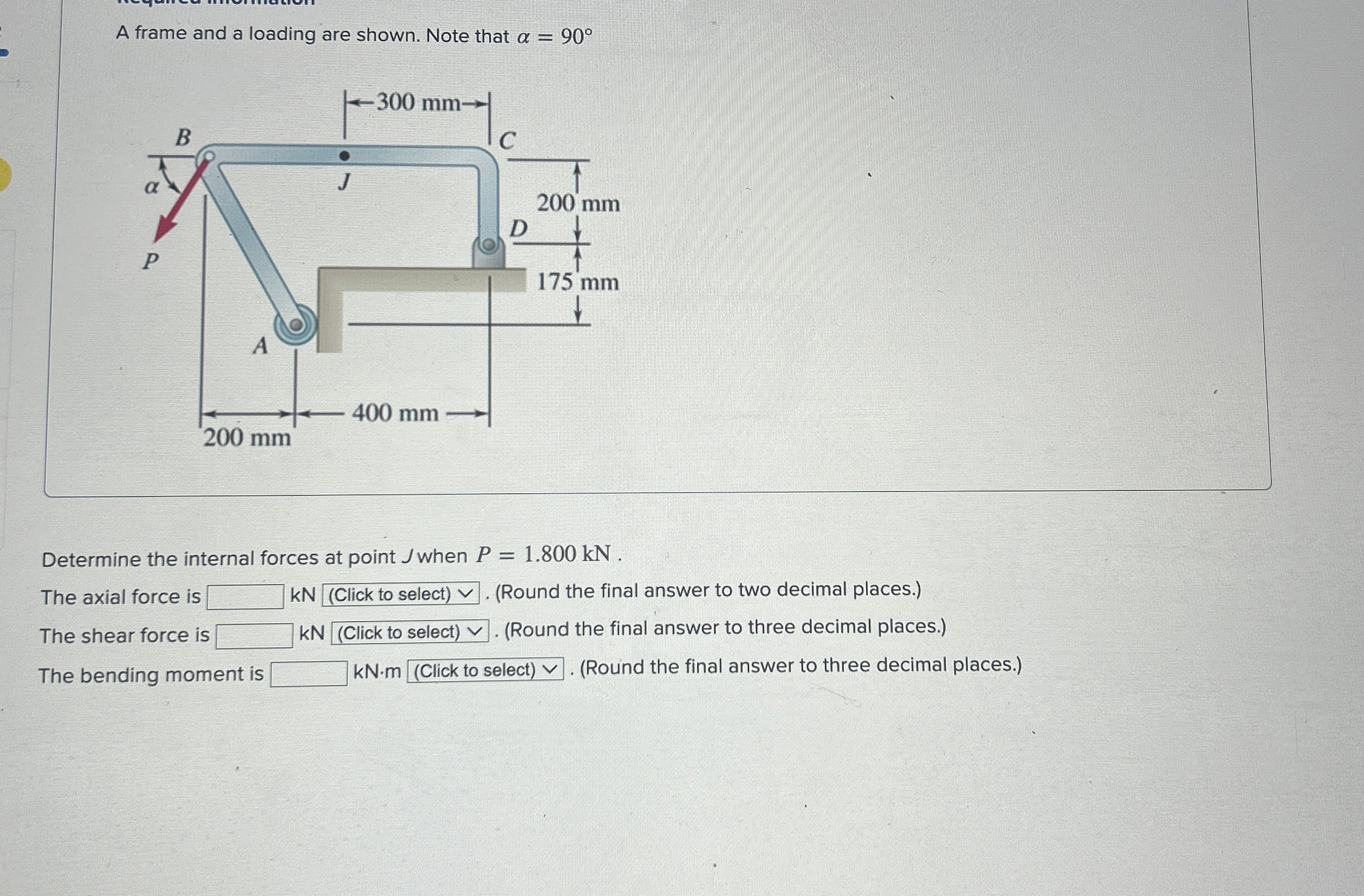

A frame and a loading are shown. Note that =90
Determine the internal forces at point J when P=1.800kN.
The axial force is kN (Click to select).(Round the final answer to two decimal places.)
The shear force is kN (Click to select)v.(Round the final answer to three decimal places.) The bending moment is kN*m(Click to select)vv.(Round the final answer to three decimal places.
