Question: a) Table Q3a. shows the logic for a particular project. (0) Construct a network diagram showing the various logical activity relationships from this information (2

a) Table Q3a. shows the logic for a particular

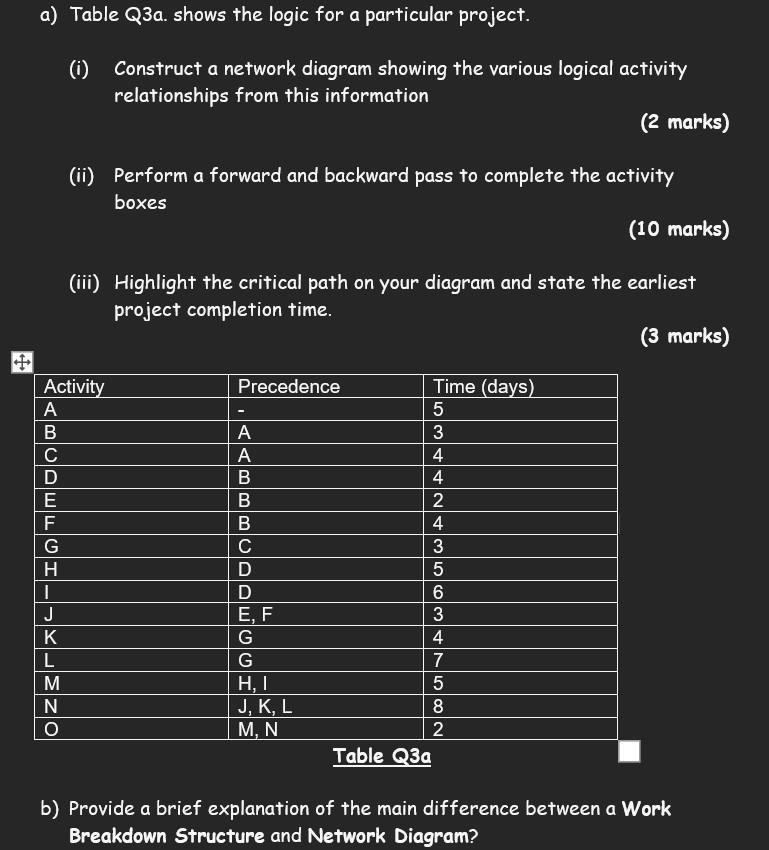

a) Table Q3a. shows the logic for a particular project. (0) Construct a network diagram showing the various logical activity relationships from this information (2 marks) (ii) Perform a forward and backward pass to complete the activity boxes (10 marks) (iii) Highlight the critical path on your diagram and state the earliest project completion time. (3 marks) + Precedence | | | Activity A B C D E F G H WD OZZ-IQTMUO A A B B B D D E, F G G HI J, K, L M, N Time (days) 5 3 4 4 2 4 3 5 6 3 4 7 5 8 J L M N N 00 Table Q3a b) Provide a brief explanation of the main difference between a Work Breakdown Structure and Network Diagram

Step by Step Solution

There are 3 Steps involved in it
