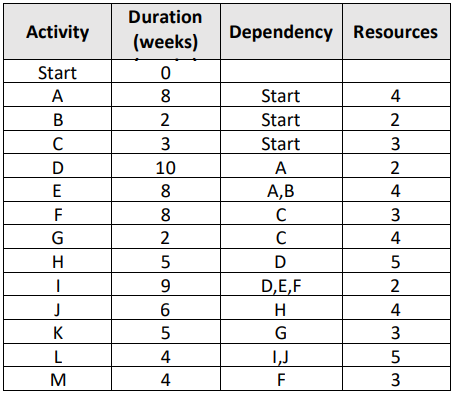

Activity

Duration $($weeks$)$

Dependency Resources Start $0$ A $8$ Start $4$ B $2$ Start $2$ C $3$ Start $3$ D $10$ A $2$ E $8$ A$,$B $4$ F $8$ C $3$ G $2$ C $4$ H $5$ D $5$ I $9$ D$,$E$,$F $2$ J $6$ H $4$ K $5$ G $3$ L $4$ I,J $5$ M $4$ F $3$

Draw a full project network including early starts, late finishes, and slack using the legend provided

$-$ What is the length of the project?

$-$ What kind of project is it likely to be$?-$ What is the critical path?

$-$ Draw the Gantt chart

$-$ Assuming there are only $10$ resources available for the duration of this project, how can the schedule be best adjusted to level the resources? Describe the changes made $(8$ marks$)$

$-$ Provide a revised Gantt chart to reflect this resource availability
