Question: Analyze the frames shown below and draw shear force & bending moment diagrams for the entire frame. Show all necessary calculations. ( P = 2

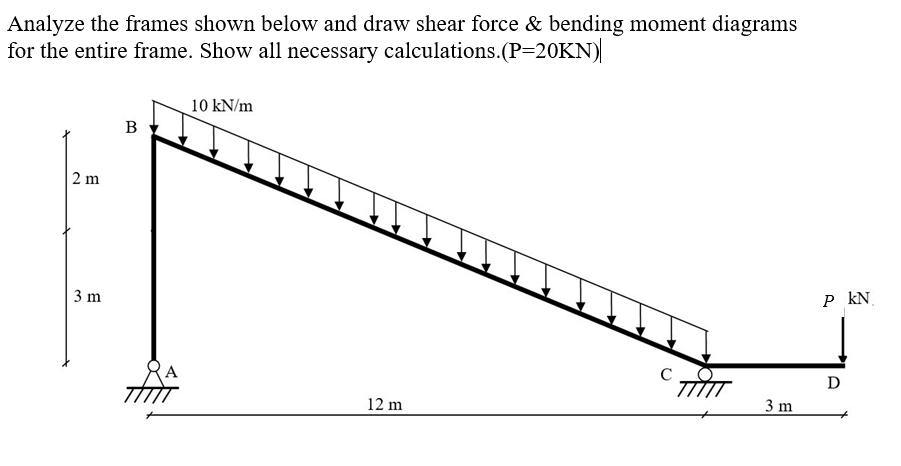

Analyze the frames shown below and draw shear force & bending moment diagrams for the entire frame. Show all necessary calculations. (P=20KN)
(DONT FORGET DRAWING)
Analyze the frames shown below and draw shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
