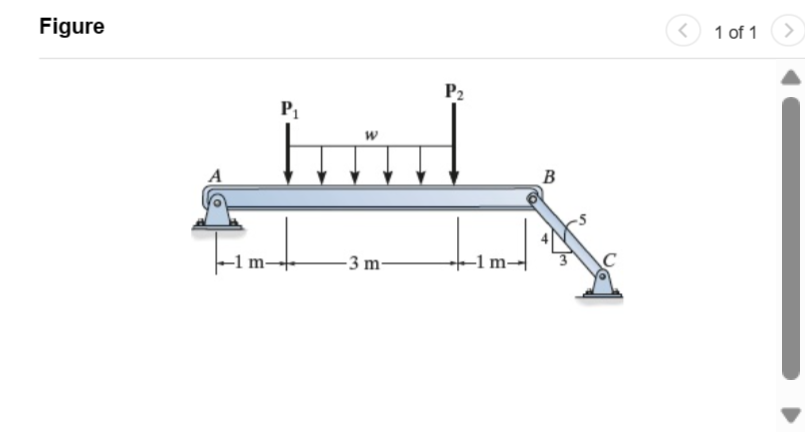

Question: Consider the beam shown in ( Figure 1 ) . Suppose that w = 3 0 kN / m , P 1 = 4 5

Consider the beam shown in (Figure 1). Suppose that w
=30 kN/m
, P1
=45 kN
, and P2
=75 kN
Determine the vertical and horizontal reaction at pin A and pin C.
Consider the beam shown in ( Figure 1 ) . Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
