Question: Consider the beam shown in ( Figure 1 ) . All pins are subjected to double shear as shown, and each has a diameter of

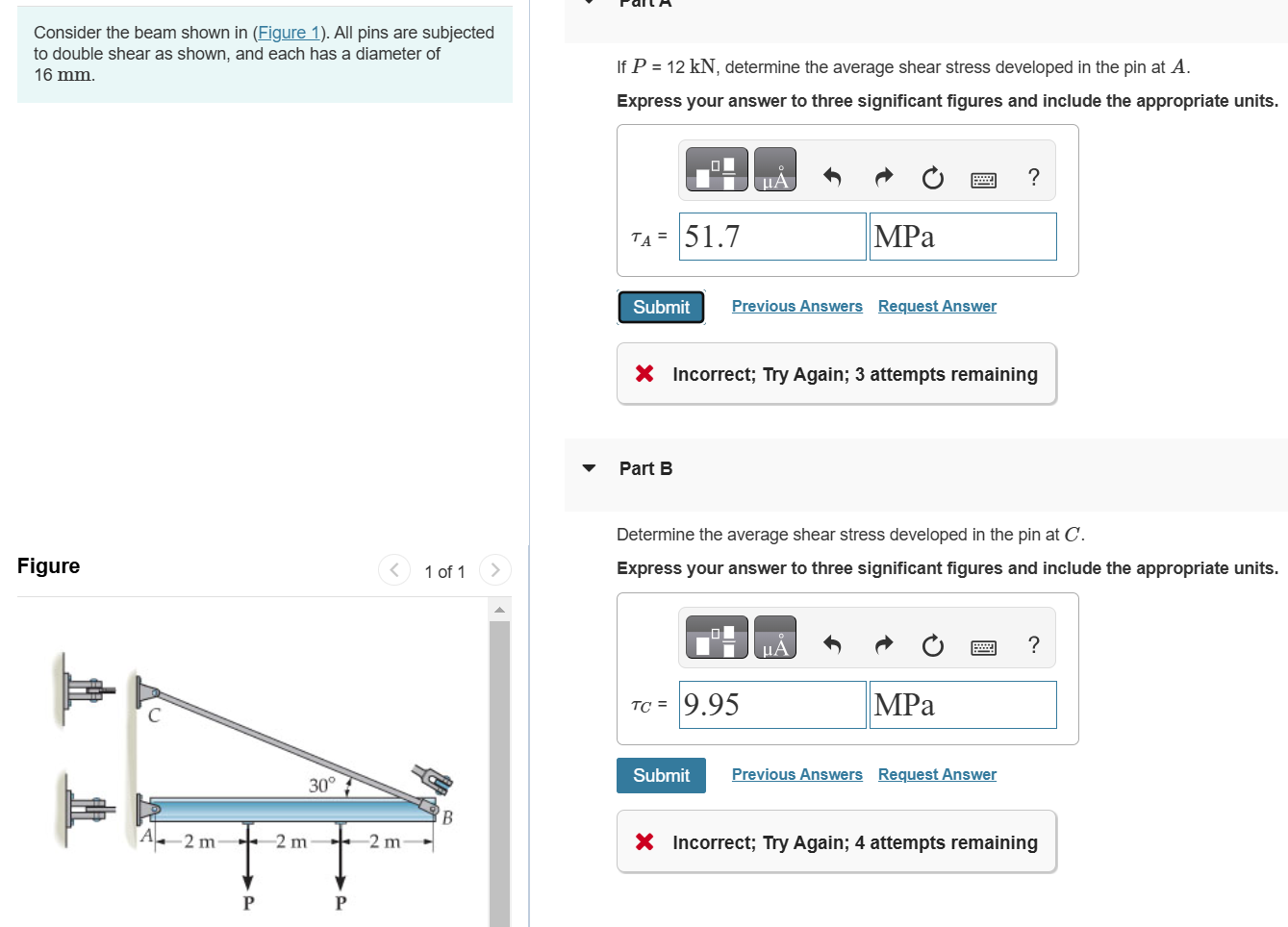

Consider the beam shown in (Figure 1). All pins are subjected to double shear as shown, and each has a diameter of 16 mm .
If \( P=12\mathrm{kN}\), determine the average shear stress developed in the pin at \( A \). Express your answer to three significant figures and include the appropriate units.
\[
\tau_{A}=
\]
Previous Answers
Request Answer
X Incorrect; Try Again; 3 attempts remaining
Part B
Determine the average shear stress developed in the pin at \( C \).
Express your answer to three significant figures and include the appropriate units.
\[
\tau_{C}=
\]
X Incorrect; Try Again; 4 attempts remaining
Consider the beam shown in ( Figure 1 ) . All

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
