Question: Consider the spring - loaded pendulum system shown in Figure 1 . Assume that spring force acting on the pendulum is zero when the pendulum

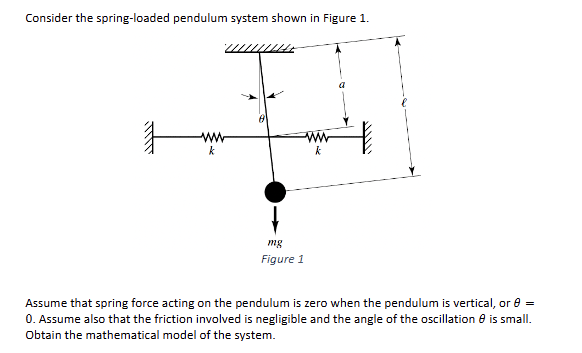

Consider the spring-loaded pendulum system shown in Figure 1.
Assume that spring force acting on the pendulum is zero when the pendulum is vertical, or \(\theta=\)0. Assume also that the friction involved is negligible and the angle of the oscillation \(\theta \) is small. Obtain the mathematical model of the system.
Consider the spring - loaded pendulum system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
