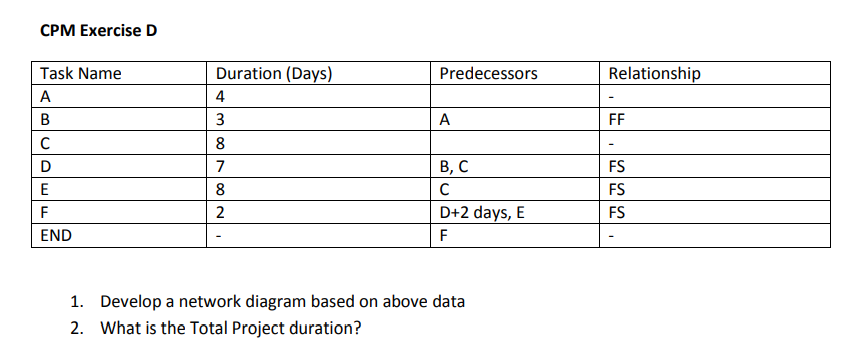

Question: CPM Exercise D 1. Develop a network diagram based on above data 2. What is the Total Project duration

CPM Exercise D 1. Develop a network diagram based

CPM Exercise D 1. Develop a network diagram based on above data 2. What is the Total Project duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Q:

Task Name A B C Predecessor(s) A A,B C,D B,D,E 8 C,E H 9 F,G 1. Develop a network diagram based on above data What is the Total Project duration? 2. Duration (Days) 3 7 4 6 5 DEFGH Successor(s) C,D...
