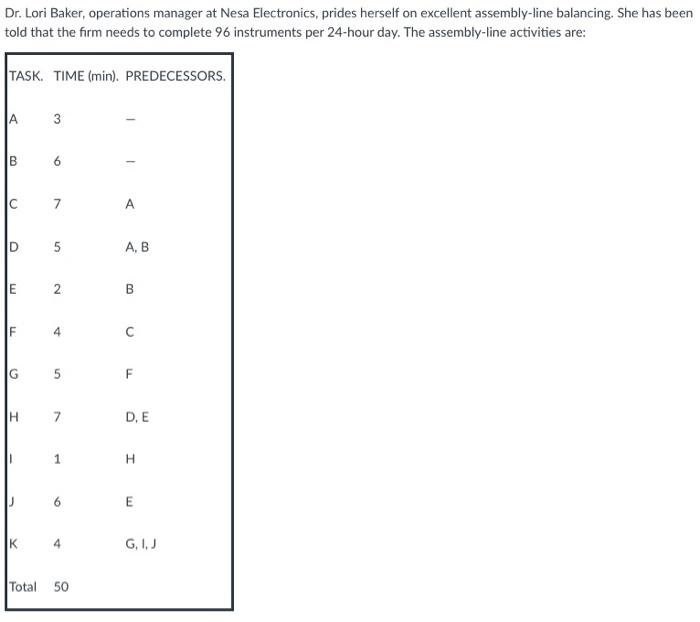

Dr. Lori Baker, operations manager at Nesa Electronics, prides herself on excellent assembly-line balancing. She has been told that the firm needs to complete 96 instruments per 24-hour day. The assembly-line activities are:

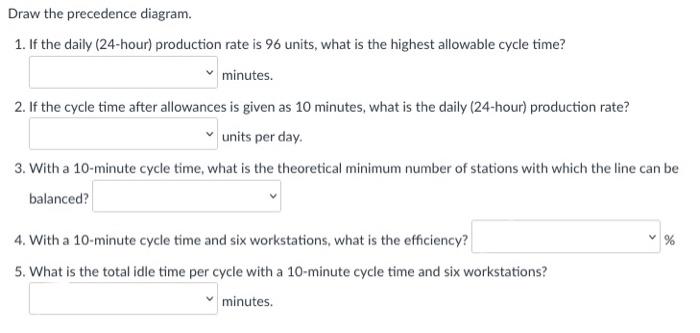

Draw the precedence diagram.

If the daily (24-hour) production rate is 96 units, what is the highest allowable cycle time?

minutes.

A 12

B 14

C 15

D 16

If the cycle time after allowances is given as 10 minutes, what is the daily (24-hour) production rate?

units per day.

A 132

B 150

C 120

D 144

With a 10-minute cycle time, what is the theoretical minimum number of stations with which the line can be balanced?

A 7

B 5

C 6

D 4

With a 10-minute cycle time and six workstations, what is the efficiency?

A 85.00%

B 83.33%

C 81.81%

D 86.67%

What is the total idle time per cycle with a 10-minute cycle time and six workstations?

A 8 minutes

B 11 minutes

C 10 minutes

D 12 minutesg

Dr. Lori Baker, operations manager at Nesa Electronics, prides herself on excellent assembly-line balancing. She has been told that the firm needs to complete 96 instruments per 24-hour day. The assembly-line activities are: TASK. TIME (min). PREDECESSORS 3 B 6 7 A A D 5 AB JE 2 B 4 G G 5 F H 7 DE 1 H H E G,1,J Total 50 Draw the precedence diagram. 1. If the daily (24-hour) production rate is 96 units, what is the highest allowable cycle time? minutes. 2. If the cycle time after allowances is given as 10 minutes, what is the daily (24-hour) production rate? units per day 3. With a 10-minute cycle time, what is the theoretical minimum number of stations with which the line can be balanced? V % 4. With a 10-minute cycle time and six workstations, what is the efficiency? 5. What is the total idle time per cycle with a 10-minute cycle time and six workstations? minutes
