Question: For the activities shown in the table below, please draw the network diagram. Immediate Activity Duration (days) Predecessors A 10 B 00 --- U N

For the activities shown in the table below,

For the activities shown in the table below, please draw the network diagram. Immediate Activity Duration (days) Predecessors A 10 B 00 --- U N D 4 E 5 B,C,D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

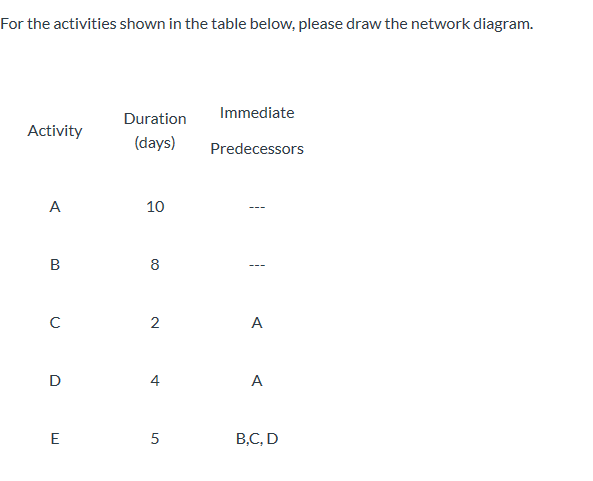

For the activities shown in the table below, please draw the network diagram. Activity A B C D E Duration (days) 10 8 2 4 5 Immediate Predecessors --- --- A A B,C,D

Question 1 0.4 pts Given the activities whose sequence is described by the following table, draw the appropriate activity-on-arrow (AOA) network diagram. IMMEDIATE ACTIVITY TIME (DAYS) PREDECESSOR(S)...

For the activities shown in the table below, please indicate the path. Immediate Activity Duration (days) Predecessors 10 B 00 C 2 A D E B,C,D B-E O A-C-E O A-D-E For the activities shown in the...

Please show your work on paper, and draw the critical path please! Thank you 1. How many paths are there through the network a. 2 b. 3 2. How many critical paths are there? a. 0 b. 1 C. 2 d. 3 3. How...

Patin Bestari Company will build a school construction project in the area of Tanjung Lumpur, Kuantan. The school construction project is expected to be completed within 1 1/2 years. Among the...

Complete the table below and calculate the critical path using the slack values. You are not required to show the network diagram ( 1 3 ) Activity Duration ( Days ) Predecessors Earliest Start ( ES )...

Please provide the solution for the below problem: 6. A project has the following characteristics. Immediate Activity Duration (days) Predecessors A A 4 C A 2 N A D 71 m D W G E N H F ,G 1 C,H 3 B 2...

Use the area below the table to draw the network diagram. Draw by hand (very neatly or Ill reject it) or use the Word Shapes to create. If you hand draw, scan the pages and upload to Blackboard for...

Draw the Network Diagram and determine the Critical Path and duration using the 2-Pass Method. Highlight the critical path. Using the Enumeration Method list all the paths and total duration and...

QUESTION 11 The critical path for the network activities shown below would be B-E if B has duration more than at least: Activity Duration Immediate Predecessors 10 7 B C D 7 5 A B.CD a. 23 b.19 c. 17...
