Question: Given is a PERT project network diagram as shown below. F E H Start End B D G Activity Start Time 0 A 2.36 B

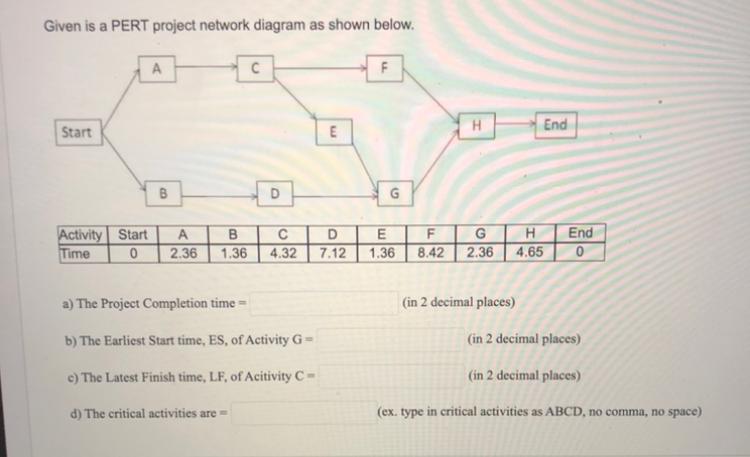

Given is a PERT project network diagram as shown

Given is a PERT project network diagram as shown below. F E H Start End B D G Activity Start Time 0 A 2.36 B 1.36 4.32 D 7.12 E 1.36 F 8.42 G H 2.364.65 End 0 a) The Project Completion time - (in 2 decimal places) b) The Earliest Start time, Es, of Activity G (in 2 decimal places) (in 2 decimal places) c) The Latest Finish time, LF, of Acitivity C - d) The critical activities are = (ex. type in critical activities as ABCD, no comma, no space)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

QUESTION 2 12 points Save Answer Given is a PERT project network diagram as shown below. A F E . Start End B D G End Activity Start Time JO A 2.36 1.36 C 4.32 D 17.12 IE 1.36 F 8.42 G 2.36 JH 4.65 JO...

Need all 3 answered Given is a CPM project network diagram as shown below. F F H Start E H End B D G B F G H Activity day Start 0 A 6 8 D 7 E 4 End 0 3 4 6 a) The Project Completion time days b) The...

Given is a PERT project network diagram as shown below. A F H End Start E B B D G Activity Start Time lo A 1.56 B 2.36 C 15.00 D 2.65 Ole E 1.98 G 3.69 | End 2.89 Jo 15.32 a) The Project Completion...

Given is a PERT project network diagram as shown below F Start E H End B D G Activity Time Start 0 3.56 B 2.63 7.21 D 3.96 E 1.82 F 1.63 G 6.42 H 3.52 End 0 a) The Project Completion time (in 2...

QUESTION 5 Given is a CPM project network diagram as shown below. F F H E Start E End B D Activity day Start 0 A 5 B 8 3 D 5 E 6 F 8 G 3 H 4 End 0 a) The Project Completion time = days. b) The...

QUESTION 5 Given is a CPM project network diagram as shown below. F Start E H End B D G Start A B C D E F G H End Activity day 0 6 8 7 4 9 4 6 0 a) The Project Completion time = days. b) The Earliest...

Given is a CPM project network diagram as shown below. F Start E H End B D G End Activity Start days a) The Project Completion time - days. b) The Earliest Start time, ES, of Activity G- days c) The...

Given is a CPM project network diagram as shown below. F Start E H End B D G Activity Start day 0 A 2 D G NI End S loo a) The Project Completion time - days. b) The Earliest Start time, Es, of...

Given is a PERT project network diagram as shown below. Activity Start A B C D E F G H End Time 0 2.36 1.36 4.32 7.12 1.36 8.42 2.36 4.65 0 a) The Project Completion time = Blank 1 (in 2 decimal...

Given is a PERT project network diagram as shown below. Activity Start A B C D E F G H End Time 0 1.35 3.65 4.32 7.36 8.25 1.39 4.68 3.25 0 a) The Project Completion time = (in 2 decimal places) b)...
