Question: Given the activities whose sequence is described by the following table, draw the appropriate activity-on-arrow (AOA) network diagram. a) Which activities are on the critical

Given the activities whose sequence is described by the following table, draw the appropriate activity-on-arrow (AOA) network diagram.

a) Which activities are on the critical path?

b) What is the length of the critical path?

Given the activities whose sequence is described

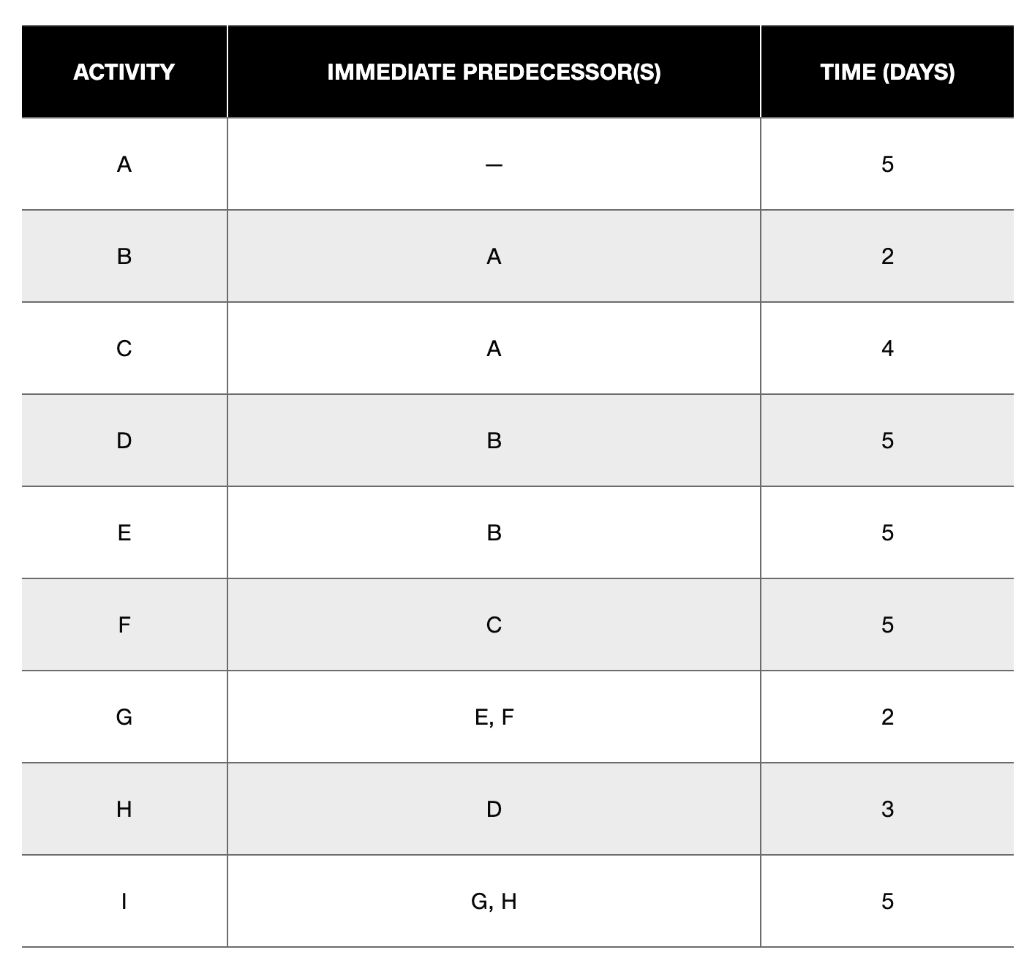

ACTIVITY IMMEDIATE PREDECESSOR(S) TIME (DAYS) A 5 B A 2 4 D B 5 E B 5 01 TI F 5 G E, F 2 H D 3 1 G H 5
