I need some help with my code in Python

Here is what I have so far:

import tkinter as tk current_line_index = 0 def next_line(): global current_line_index text = ip_text_box.get('1.0', 'end-1c').split(' ') if current_line_index >= len(text) - 1: return ip_line_tb.delete(0, tk.END) # This will insert the value of the current line ip_line_tb.insert(tk.END, current_line_index + 1) op_text_box.insert(tk.END, text[current_line_index] + ' ') current_line_index += 1 def quit(): # quits the app app.quit() #Here is the main windows app = tk.Tk() app.title('Lexical Analyzer for TinyPie') app.geometry("1500x700+20+50") app.resizable(False, False) # This will input side widgets ip_container = tk.Frame(app, width=1, height=1) ip_container.grid_propagate(False) ip_container.pack(side="left", fill="both", expand=True) ip_label = tk.Label(app, text='Source Code Input:') ip_label.place(x=50, y=50) ip_text_box = tk.Text(ip_container) ip_text_box.place(x=50, y=80) ip_line_label = tk.Label(app, text='Current Processing Line:') ip_line_label.place(x=400, y=500) ip_line_tb = tk.Entry(app) ip_line_tb.size() ip_line_tb.place(x=550, y=500) ip_next_button = tk.Button(app, text='Next', command=next_line) ip_next_button.place(x=550, y=550) # This will output the side widgets op_container = tk.Frame(app, width=10, height=10) op_container.grid_propagate(False) op_container.pack(side="right", fill="both", expand=True) op_label = tk.Label(app, text='Tokens') op_label.place(x=790, y=50) op_text_box = tk.Text(op_container) op_text_box.place(x=50,y=80) op_next_button = tk.Button(app, text='Quit', command=quit) op_next_button.place(x=1350, y=550) #calling the main function if __name__ == '__main__': app.mainloop()

and I need you to change it so that the output will be something like this:

user can choose to type any number of spaces between an identifier, literal and the = sign or + sign or > sign, etc.

The lexer can have different appearance from this example output.

Thank you so much! Any help is appreciated!

I believe the function that needs to be called to find the Tokens will look something like this

import re def cutOneLineTokens(line): token="[" while 1: line=line.strip() if len(line)==0: break x=re.match("(if|int|else|float)",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] x=re.match(r"(=|\+|>|\*)",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] x=re.match(r"(\(|\)|:|\"|;)",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] x=re.match(r"\d+\.\d+",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] x=re.match(r"(\d+)",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] x=re.match(r"\w([a-zA-z0-9])*",line) if x is not None: token+=f',' line=line[:x.span()[0]]+line[x.span()[1]:] token=token[:-1] token+="]" print(token) cutOneLineTokens("int A1=5") cutOneLineTokens("float red = 1.5 * 6 + 11")

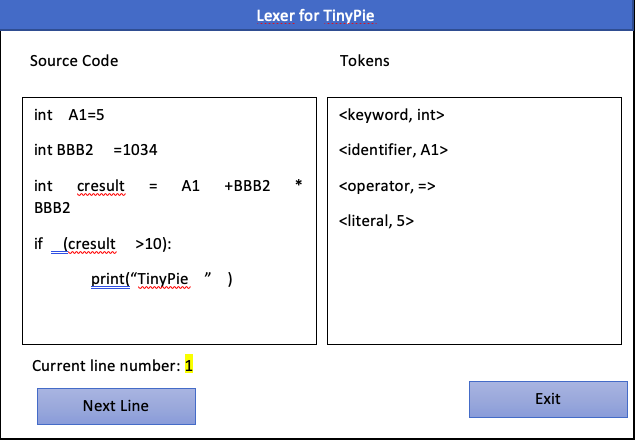

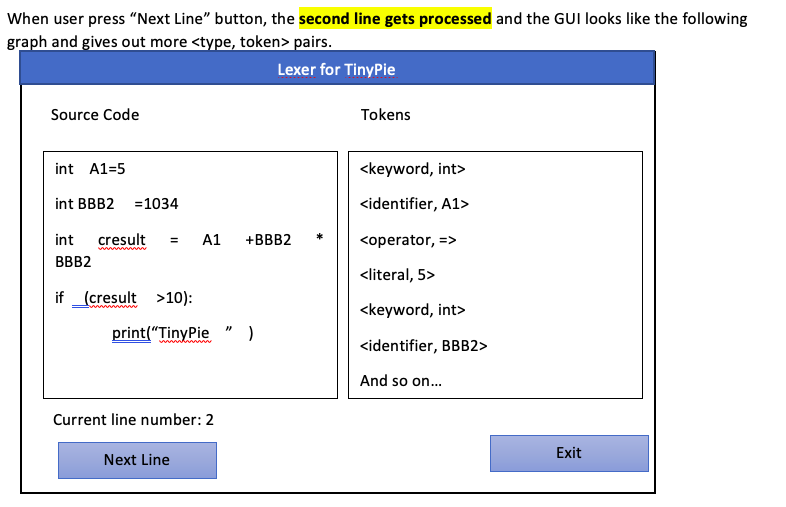

Lexer for TinyPie Source Code Tokens int A1=5 int BBB2 =1034 cresult A1 +BBB2 int BBB2 if (cresult >10): print("TinyPie ) Current line number: 1 Exit Next Line When user press "Next Line" button, the second line gets processed and the GUI looks like the following graph and gives out more pairs. Lexer for TinyPie Source Code Tokens int A1=5 int BBB2 = 1034 cresult A1 +BBB2 int BBB2 if (cresult >10): print("TinyPie ) And so on... Current line number: 2 Exit Next Line Lexer for TinyPie Source Code Tokens int A1=5 int BBB2 =1034 cresult A1 +BBB2 int BBB2 if (cresult >10): print("TinyPie ) Current line number: 1 Exit Next Line When user press "Next Line" button, the second line gets processed and the GUI looks like the following graph and gives out more pairs. Lexer for TinyPie Source Code Tokens int A1=5 int BBB2 = 1034 cresult A1 +BBB2 int BBB2 if (cresult >10): print("TinyPie ) And so on... Current line number: 2 Exit Next Line
