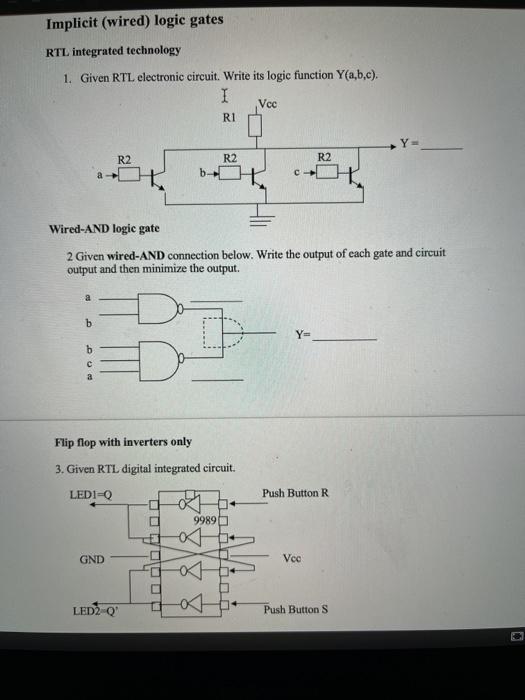

Implicit (wired) logic gates RTL integrated technology 1. Given RTL electronic circuit. Write its logic function Ya,b,c). I Vec RI R2 R2 R2 3 Wired-AND logic gate 2 Given wired-AND connection below. Write the output of each gate and circuit output and then minimize the output. b Y b 3 Flip flop with inverters only 3. Given RTL digital integrated circuit LEDIE Push Button R 9989 DUUU TU GND Voo LED2 Q Push Button S Flip flop with inverters only 3. Given RTL digital integrated circuit. LEDI-Q Push Button R . 9989 GND UUTUUDD Vec of LED2-Q" Push Button S If R(eset) = 1, S(et) = 0 then Q = 02 1? The LED which will light is :LEDI? LED2
