Individual Network Diagram.

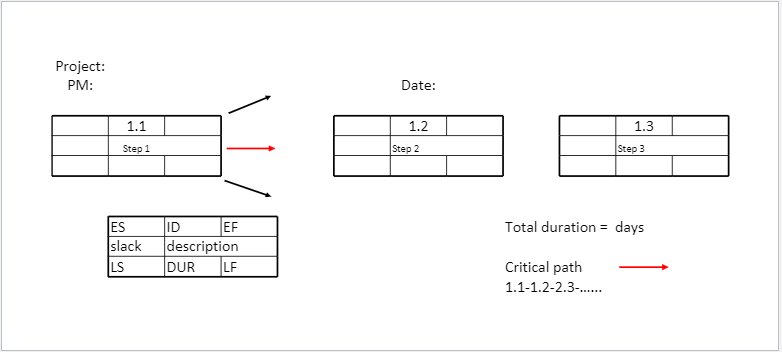

Use the below template to complete your Project Network diagram. Include the ES (early start), EF (early finish), LS (late start), LF (late finish), and Slack in each work package box, as well as the total project duration and clearly identify the critical path. Please use MS Excel to complete the task.

Excel Template

Information Needed

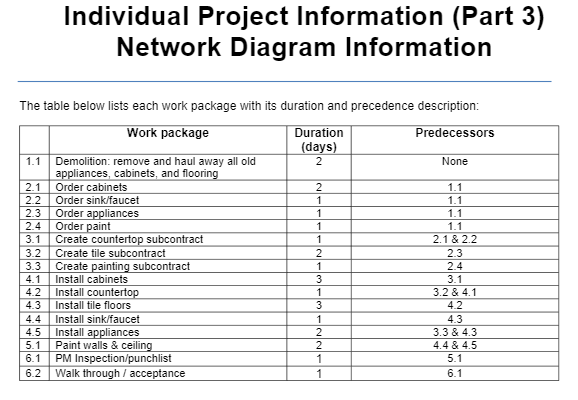

Project: PM: Date: 1.1 1.2 1.3 Step 1 Step 2 Step 3 Total duration = days ES slack LS ID EF description DUR LF Critical path 1.1-1.2-2.3-...... Individual Project Information (Part 3) Network Diagram Information The table below lists each work package with its duration and precedence description: Work package Duration Predecessors (days) 1.1 Demolition: remove and haul away all old 2 None appliances, cabinets, and flooring 2.1 Order cabinets 2 1.1 2.2 Order sink/faucet 1 1.1 2.3 Order appliances 1 1.1 2.4 Order paint 1 1.1 3.1 Create countertop subcontract 1 2.1 & 22 3.2 Create tile subcontract 2 2.3 3.3 Create painting subcontract 1 2.4 4.1 Install cabinets 3 3.1 4.2 Install countertop 1 3.2 & 4.1 4.3 Install tile floors 3 4.2 4.4 Install sink/faucet 1 4.3 4.5 Install appliances 2 3.3 & 4.3 5.1 Paint walls & ceiling 2 4.4 & 4.5 6.1 PM Inspection/punchlist 1 5.1 6.2 Walk through / acceptance 1 6.1
