Question: Internal Shear and Moment ( 2 5 pts ) Develop equations for the internal shear and bending moment for the beam below. Draw applicable FBDs

Internal Shear and Moment (25 pts )

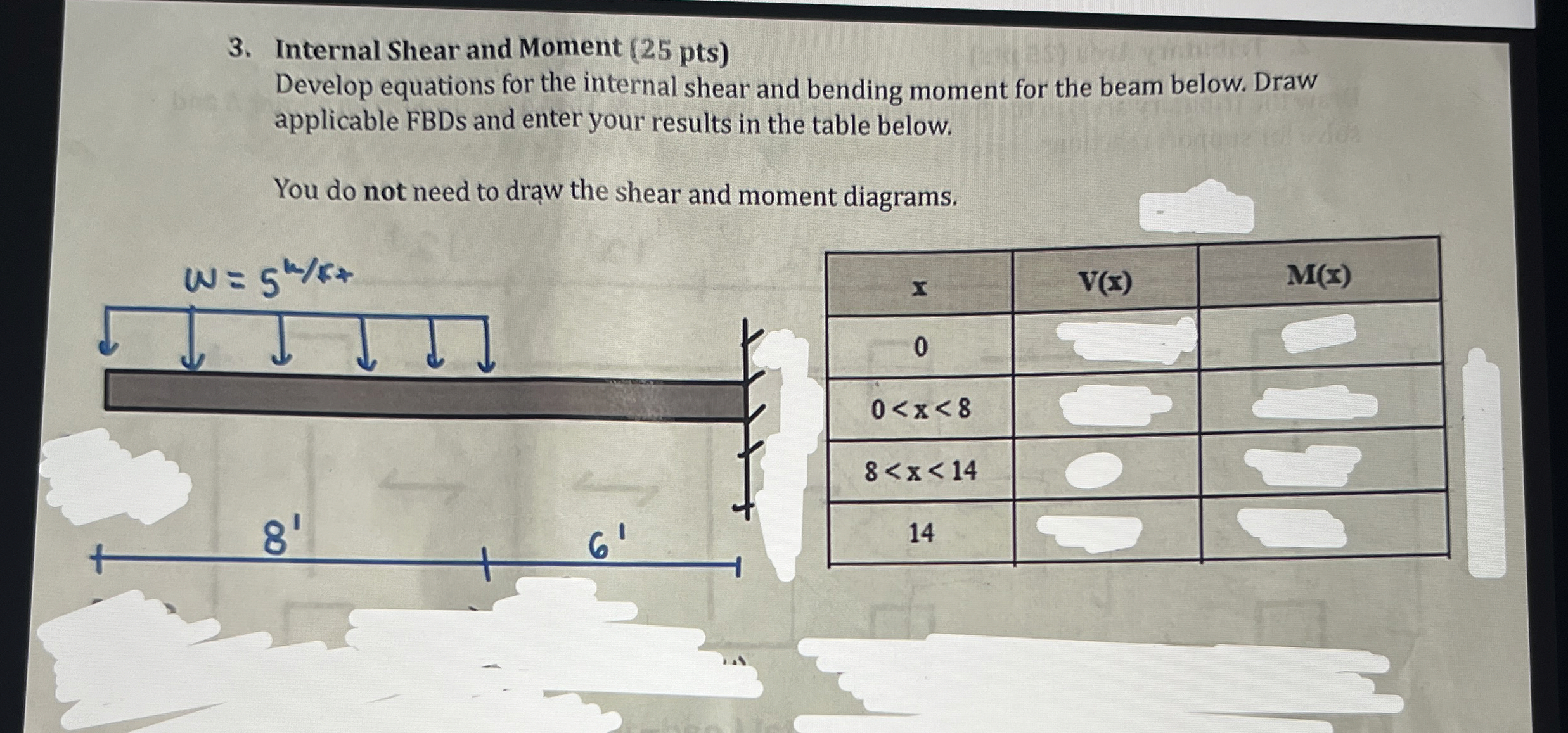

Develop equations for the internal shear and bending moment for the beam below. Draw applicable FBDs and enter your results in the table below.
You do not need to draw the shear and moment diagrams.
Internal Shear and Moment ( 2 5 pts ) Develop

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
