Question: NOT using matlab / python Assume the symmetric cross - section below. The flexural rigidity ( bending stiffness ) of the beam is E I

NOT using matlab/python
Assume the symmetric cross-section below. The flexural rigidity (bending stiffness) of
the beam is EI.

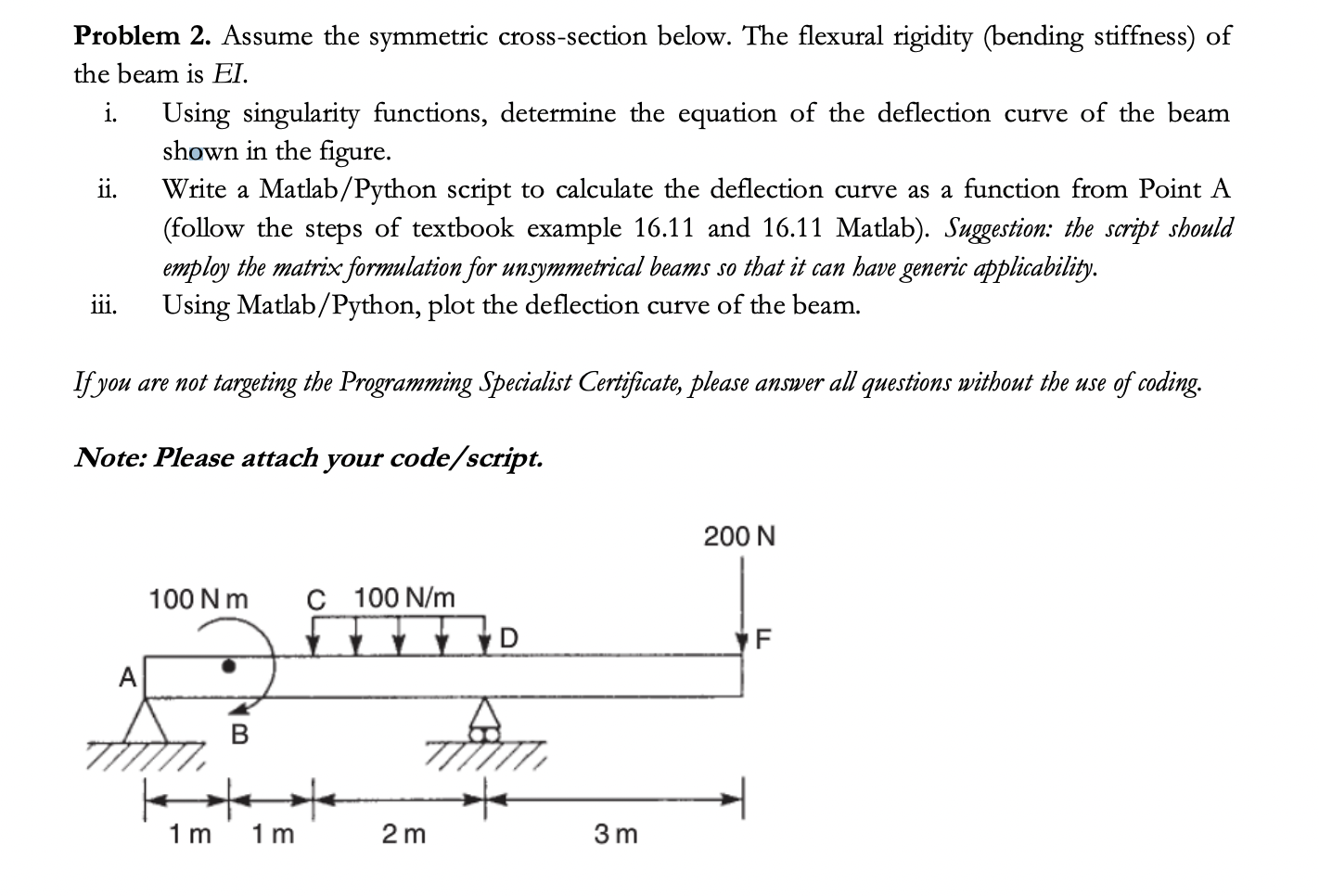

i. Using singularity functions, determine the equation of the deflection curve of the beam
shown in the figure.
ii.calculate the deflection curve as a function from Point A
iii. plot the deflection curve of the beam.
NOT using matlab / python Assume the symmetric

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
