Part A $-$ Internal Loading Due to a Variable, Distributed Load

Review

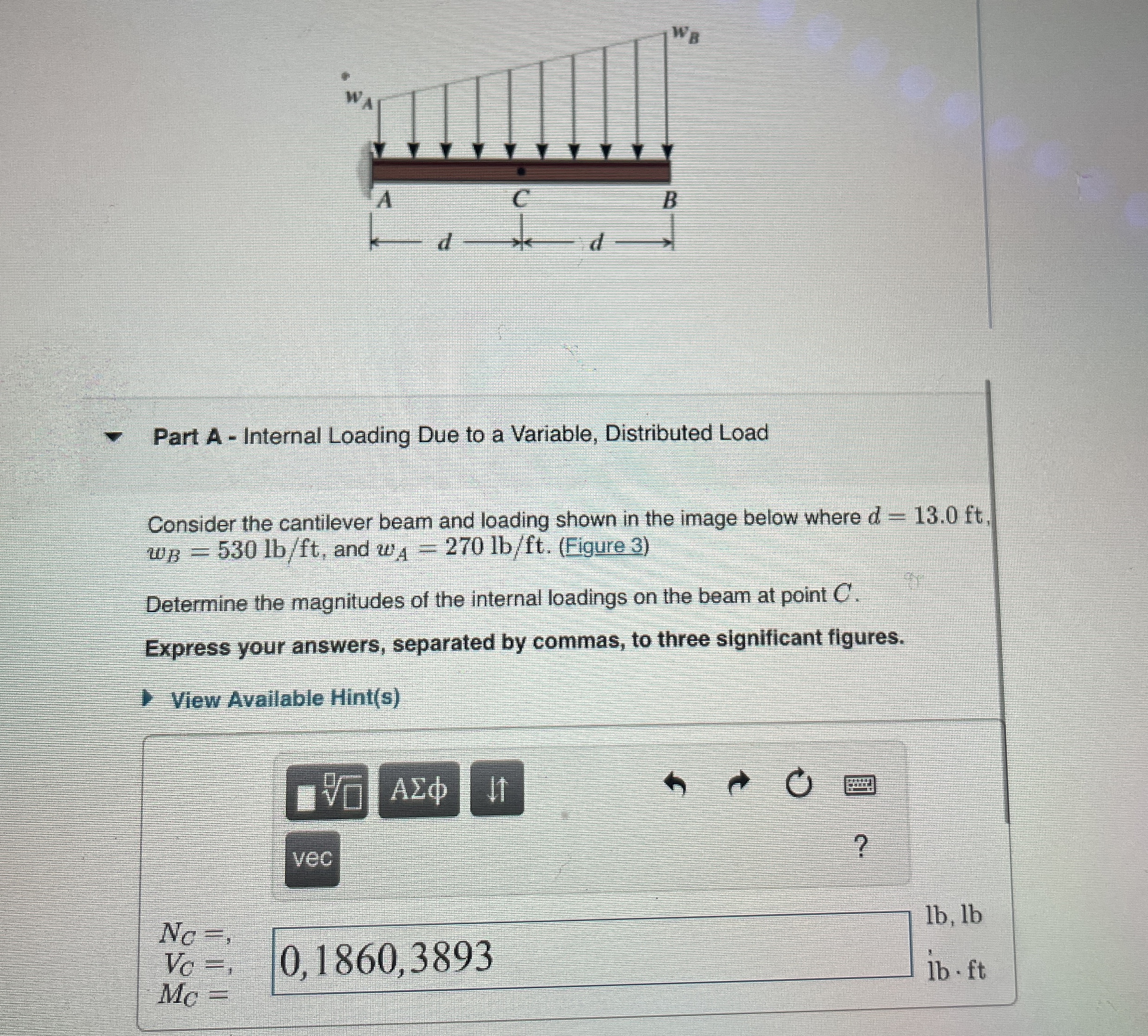

Consider the cantilever beam and loading shown in the image below where $d=13\mathrm{.}0ft,w_B=530l\frac{b}{f}t,$ and $w_A=270l\frac{b}{f}t.($Figure $3)$

Determine the magnitudes of the internal loadings on the beam at point $C.$

Express your answers, separated by commas, to three significant figures.

View Available Hint$($s$)$

$N_C=,V_C=,M_C=lb,lb,lb*ft$

rt B $-$ Internal Loading on a Semicircular Member

sider the semicircular member and loading shown in the image where $d=0\mathrm{.}730m$ and $F=65\mathrm{.}0N.$ ure $4)$

rmine the magnitudes of the internal loadings on the beam at point $B.$

ess your answers, separated by commas, to three significant figures.

w Available Hint$($s$)$

Part A $-$ Internal Loading Due to a Variable, Distributed Load

Consider the cantilever beam and loading shown in the image below where $d=13\mathrm{.}0ft,w_B=530l\frac{b}{f}t,$ and $w_A=270l\frac{b}{f}t.($Figure $3)$

Determine the magnitudes of the internal loadings on the beam at point $C.$

Express your answers, separated by commas, to three significant figures.

View Available Hint$($s$)$

$]=[,$
