Question: Please draw a clear diagram Table 1 Activity Predecessor A Activity Duration (days) 5 10 12 2 16 B D E F G H I

Please draw a clear diagram

Please draw a clear diagram Table 1 Activity

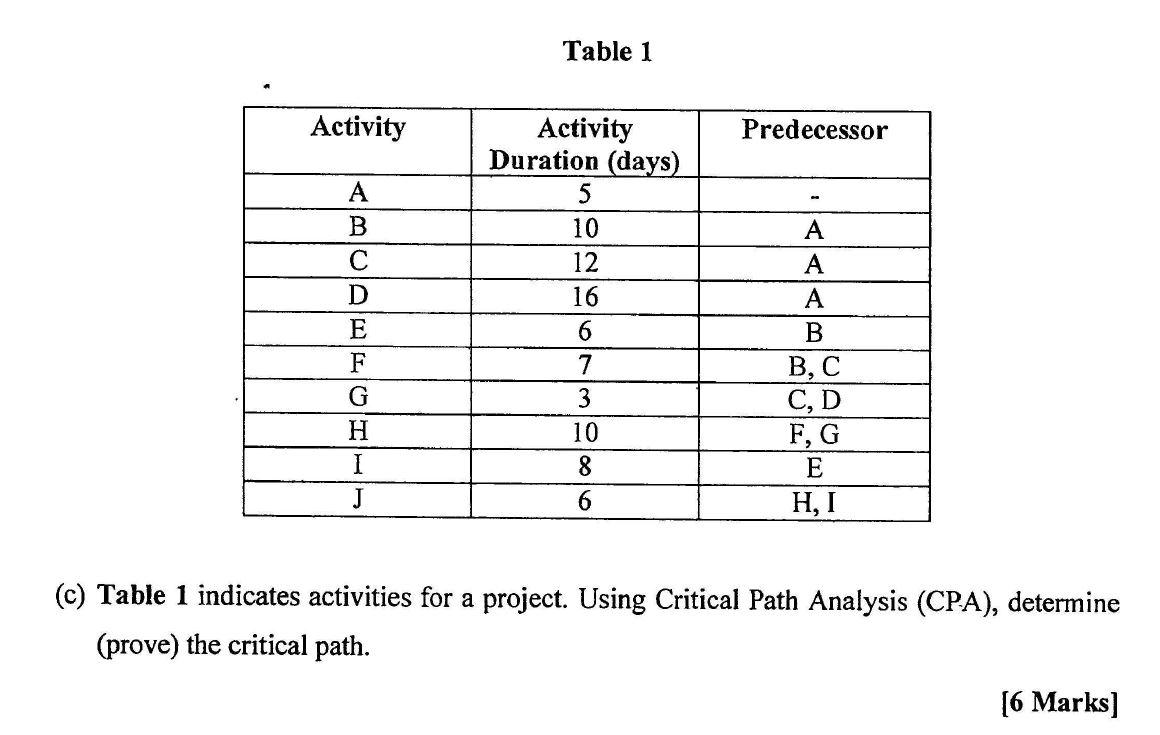

Table 1 Activity Predecessor A Activity Duration (days) 5 10 12 2 16 B D E F G H I J 6 7 A A A B B, C C, D F, G E HI 3 10 8 6 (c) Table 1 indicates activities for a project. Using Critical Path Analysis (CPA), determine (prove) the critical path. [6 Marks]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
