Question: Please help in PYTHON not MATLAB. L Resistor R Capacitor C Inductor L Vi R V Input voltage signal V Output voltage signal V. A

Please help in PYTHON not MATLAB.

Please help in PYTHON not MATLAB. L Resistor R Capacitor C Inductor L Vi R V Input voltage signal V Output voltage signal V.

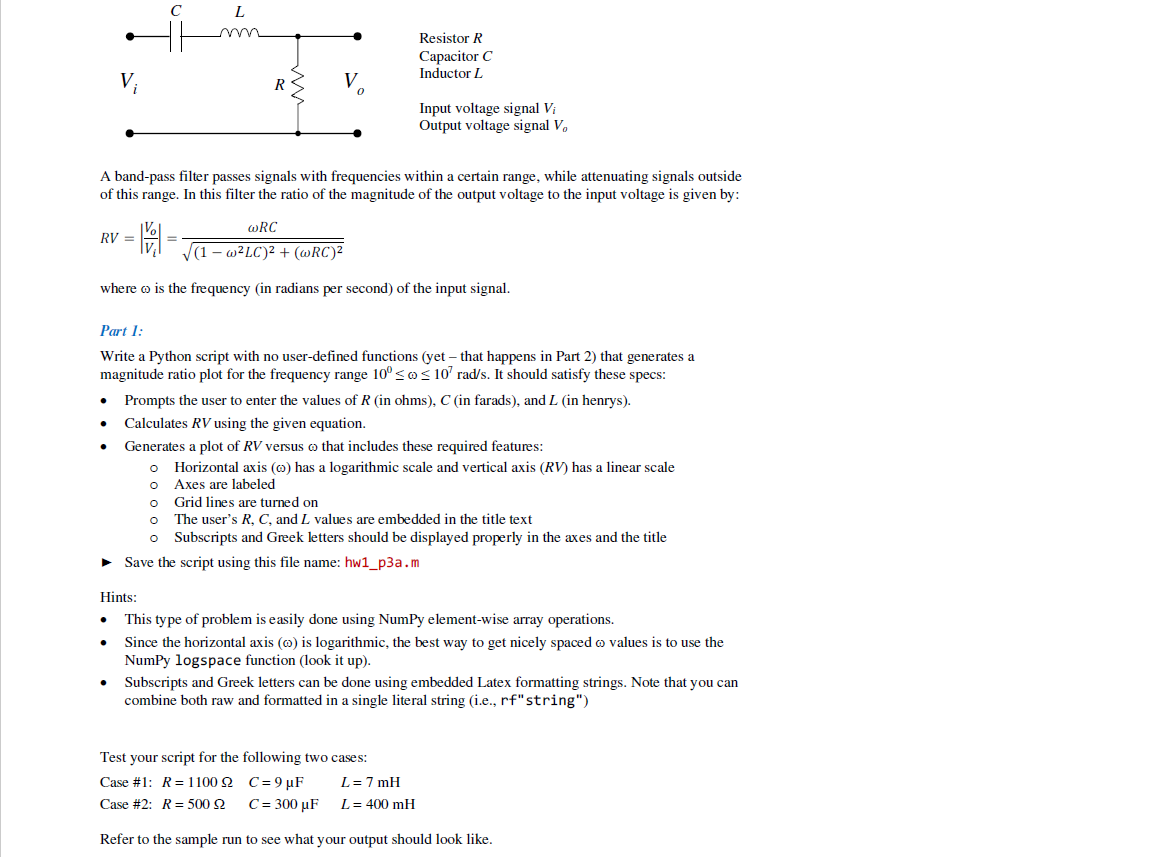

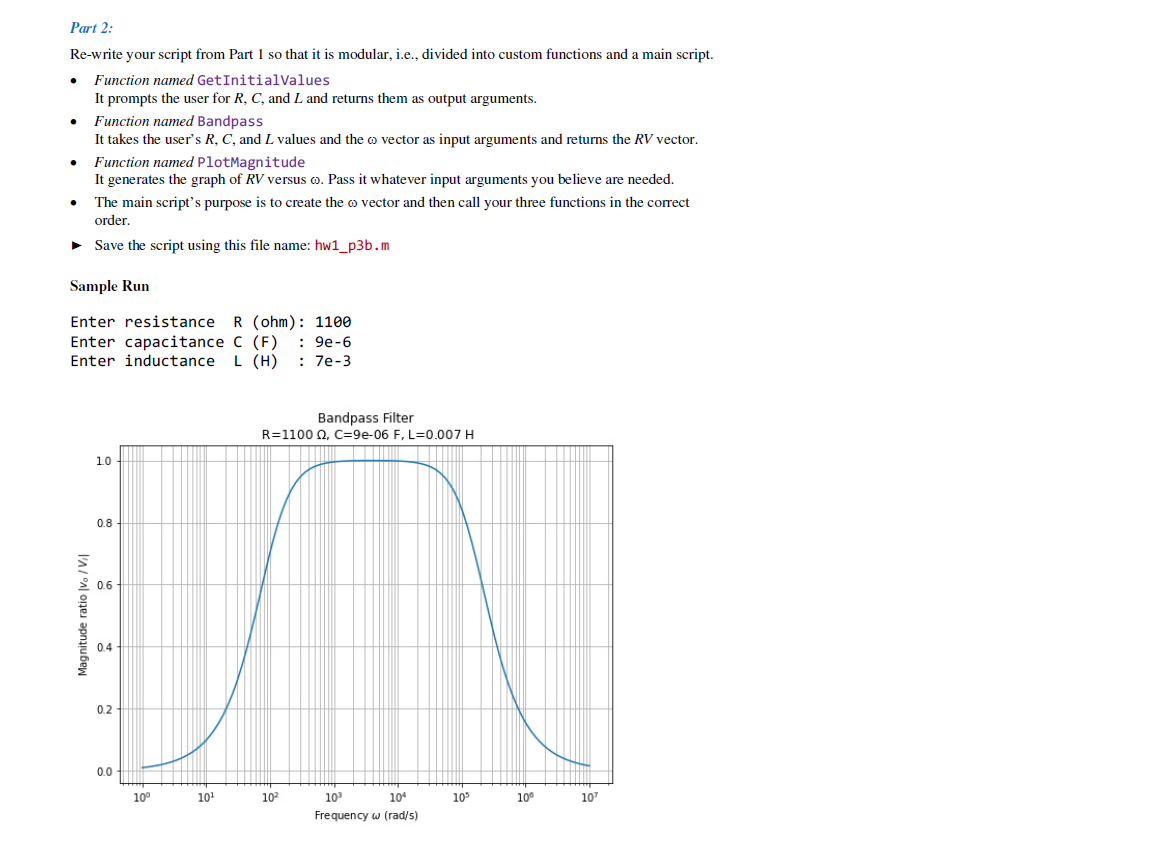

L Resistor R Capacitor C Inductor L Vi R V Input voltage signal V Output voltage signal V. A band-pass filter passes signals with frequencies within a certain range, while attenuating signals outside of this range. In this filter the ratio of the magnitude of the output voltage to the input voltage is given by: RV = - WRC (1 - w2LC)2 + (WRC)2 where o is the frequency (in radians per second) of the input signal. Part 1: Write a Python script with no user-defined functions (yet - that happens in Part 2) that generates a magnitude ratio plot for the frequency range 10
