Question: Please solve on Matlab. Problem 2 ( 3 0 points ) : For the spring assemblage shown below, determine the displacements at nodes 2 and

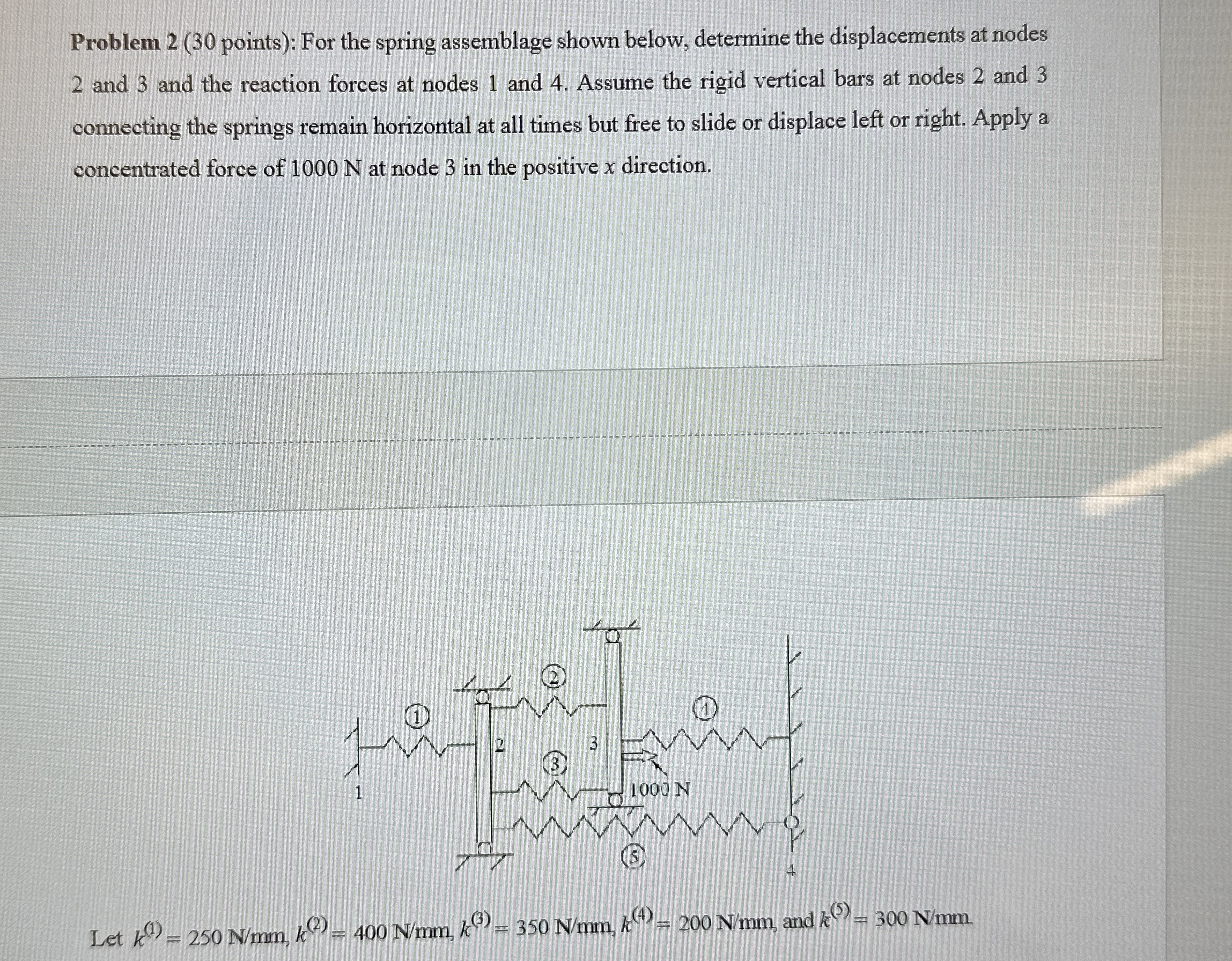

Please solve on Matlab. Problem 2(30 points): For the spring assemblage shown below, determine the displacements at nodes
2 and 3 and the reaction forces at nodes 1 and 4. Assume the rigid vertical bars at nodes 2 and 3
connecting the springs remain horizontal at all times but free to slide or displace left or right. Apply a
concentrated force of 1000 N at node 3 in the positive x direction.
Let k(1)=250Nmm,k(2)=400Nmm,k(3)=350Nmm,k(4)=200Nmm, and k(5)=300Nmm
Please solve on Matlab. Problem 2 ( 3 0 points )
