Question: Problem 1 ( 1 0 points ) Please draw the FBD and write equilibrium equations that can help determine the reactions Draw the FBD of

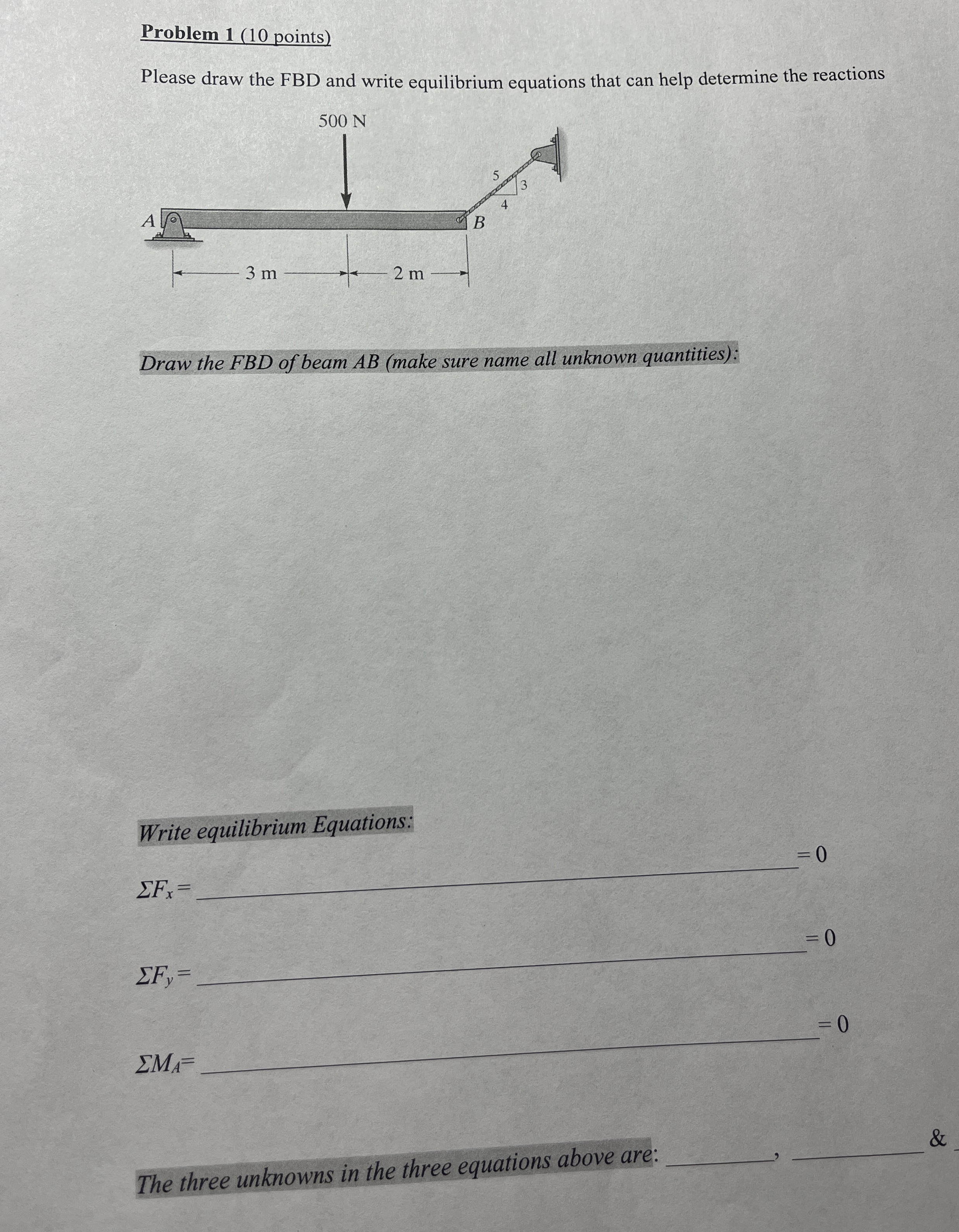

Problem 1(10 points)
Please draw the FBD and write equilibrium equations that can help determine the reactions
Draw the FBD of beam AB(make sure name all unknown quantities):
Write equilibrium Equations:
F
Fy=
The three unknowns in the three equations above are: q, &
Problem 1 ( 1 0 points ) Please draw the FBD and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
