Question: Problem 1 : PID controller and stead - state error Consider a general feedback control system shown in Figure 1 . Let G P (

Problem 1: PID controller and stead-state error

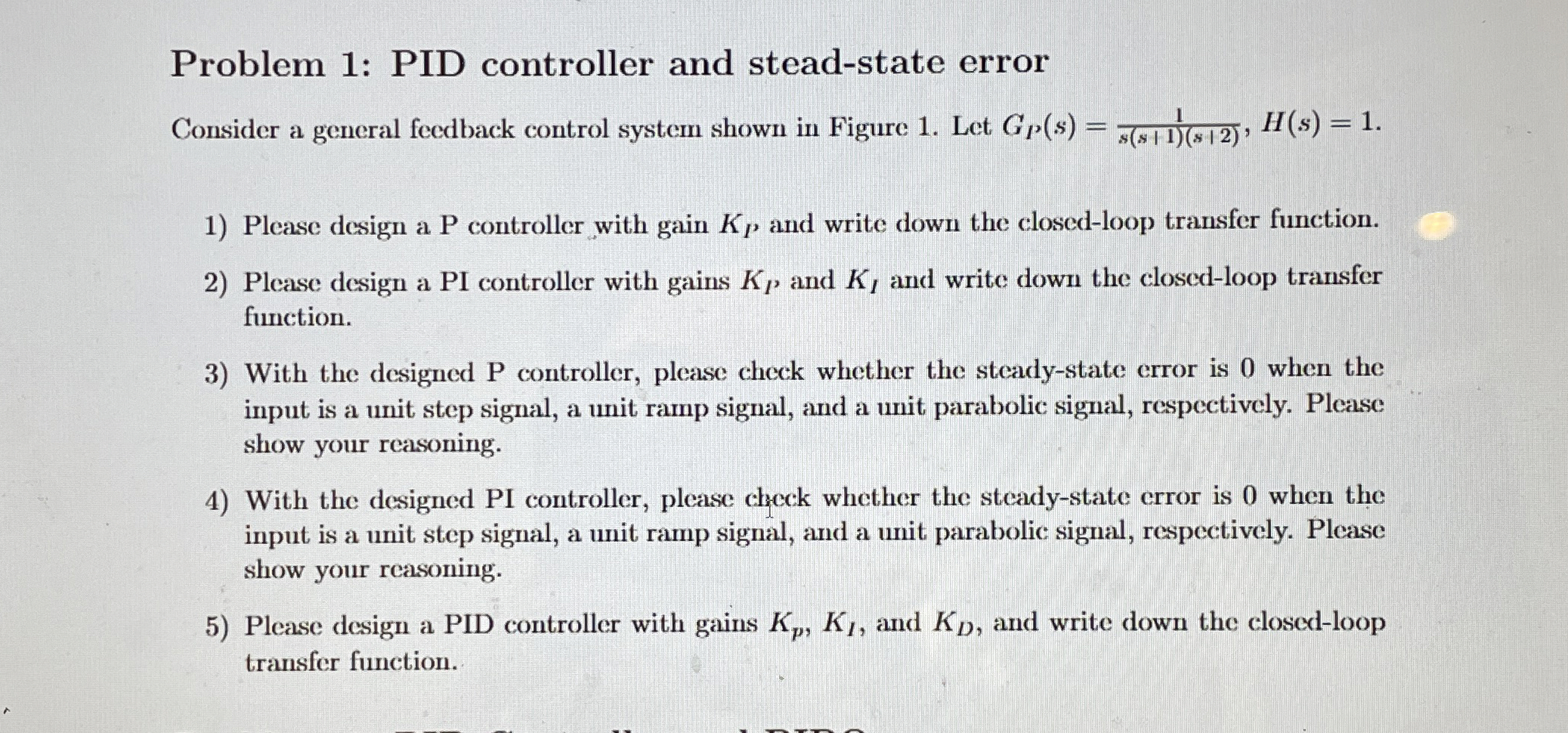

Consider a general feedback control system shown in Figure 1. Let GP(s)=1s(s+1)(s+2),H(s)=1.
Please design a P controller with gain KP, and write down the closed-loop transfer function.
Please design a PI controller with gains KP, and KI and write down the closed-loop transfer function.
With the designed P controller, please check whether the steady-state error is 0 when the input is a unit step signal, a unit ramp signal, and a unit parabolic signal, respectively. Please show your reasoning.
With the designed PI controller, please check whether the steady-state error is 0 when the input is a unit step signal, a unit ramp signal, and a unit parabolic signal, respectively. Please show your reasoning.
Please design a PID controller with gains Kp,KI, and KD, and write down the closed-loop transfer function.
Problem 1 : PID controller and stead - state

Step by Step Solution
