Question: Problem #2 20 Points Develop a CPM diagram for the activities/relationships listed below (assume durations are in months). For each activity calculate the Early Start,

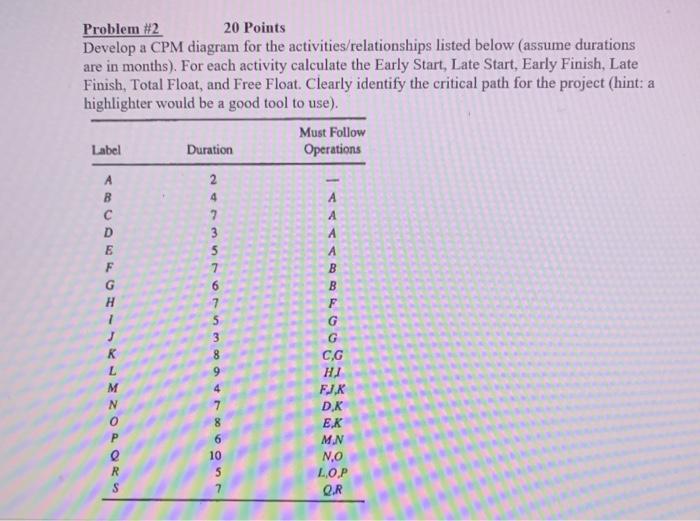

Problem #2 20 Points Develop a CPM diagram for the activities/relationships listed below (assume durations are in months). For each activity calculate the Early Start, Late Start, Early Finish, Late Finish, Total Float, and Free Float. Clearly identify the critical path for the project (hint: a highlighter would be a good tool to use). Must Follow Label Duration Operations A B D E F G H 7 J R L M N 0 P 2 4 7 3 5 7 6 7 5 3 A A B B F G G CG HI FJ.K DK EK M.N 6 10 5 7 NO R S LOP QR

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
