Question: Question 2 (15 points) Saved Task D E F Predecessor Duration (days) Start 2 A 4 3 B 5 B 2. 3 F 2 DE

Question 2 (15 points) Saved Task D E F

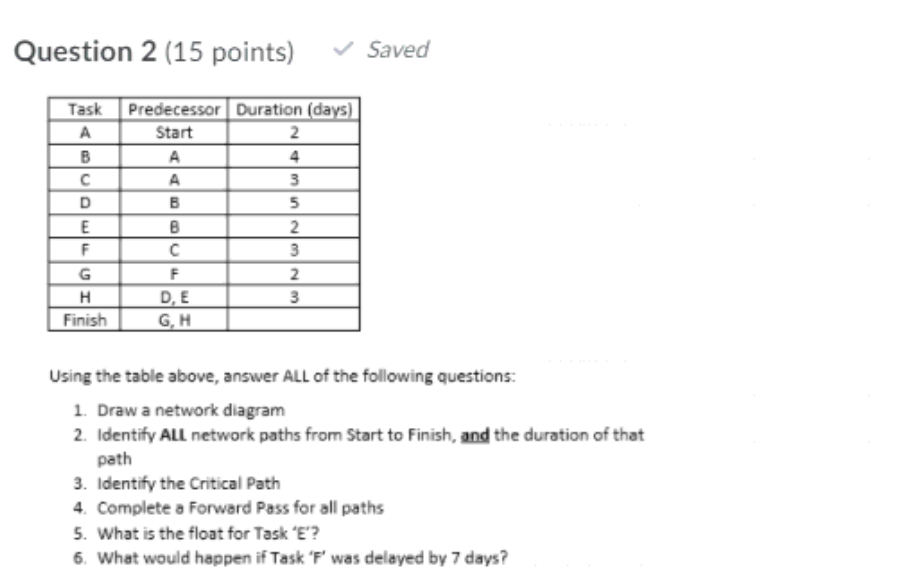

Question 2 (15 points) Saved Task D E F Predecessor Duration (days) Start 2 A 4 3 B 5 B 2. 3 F 2 DE 3 GH H Finish Using the table above, answer ALL of the following questions: 1. Draw a network diagram 2. Identify ALL network paths from start to Finish, and the duration of that path 3. Identify the Critical Path 4. Complete a Forward Pass for all paths 5. What is the float for Task 'E'? 6. What would happen if Task 'F' was delayed by 7 days

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
