Question: Question 3: 4-bit Shift Register using DFFs Design a 4-bit shift register using four DFFs (74LS74) The circuit should have one input called In, and

 Question 3: 4-bit Shift Register using DFFs Design a 4-bit shift

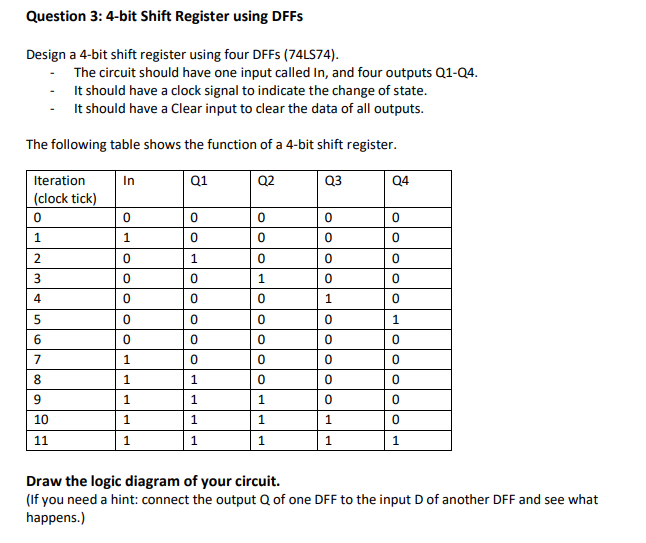

Question 3: 4-bit Shift Register using DFFs Design a 4-bit shift register using four DFFs (74LS74) The circuit should have one input called In, and four outputs Q1-04. It should have a clock signal to indicate the change of state It should have a Clear input to clear the data of all outputs - The following table shows the function of a 4-bit shift register. IterationIn (clock tick) 0 CEB IIA i0 0 0 0 0 0 0 10 0 Draw the logic diagram of your circuit. (If you need a hint: connect the output Q of one DFF to the input D of another DFF and see what happens.)
