Question: The beam AB will fail if the maximum internal moment at D reaches 7 4 0 N m or the normal force in member BC

The beam AB will fail if the maximum internal moment at D reaches

740

m or the normal force in member BC becomes

1500

.

(

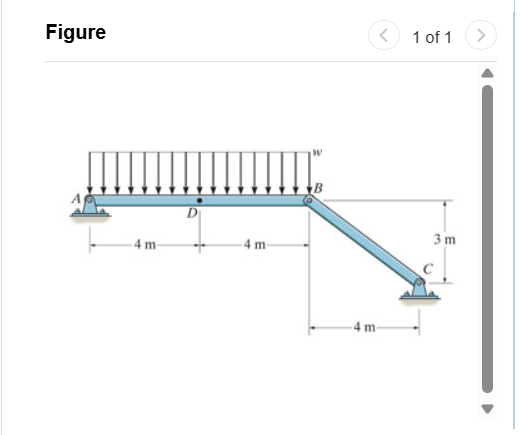

Figure

1)

Figure

1

1

Part A

Determine the largest load w it can support.

Express your answer to three significant figures and include the appropriate units.

Activate to select the appropriates template from the following choices. Operate up and down arrow for selection and press enter to choose the input value typeActivate to select the appropriates symbol from the following choices. Operate up and down arrow for selection and press enter to choose the input value type

=

The beam AB will fail if the maximum internal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Question 5 : The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m or the normal force in member BC becomes 1 5 0 0 N . Determine the largest load w it can support. Question...

* 4 - 4 . Determine the internal normal force, shear force, and bending moment at point D . Take w = 1 5 0 N m . 4 - 5 . The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m...

4 - 5 ( w = 1 5 0 N / m ) draw the sheer and moment diagram for the beam . The beam A B will fail if the maximum internal moment at D reaches 8 0 0 N * m or the normal force in member B C becomes 1 5...

Q# 2 ( 3 0 pts ) : The loading condition and geometry of the beam is given in Figure 2 has simple support at point A and C , pinned point at point B . The beam AB shall fail if the maximum internal...

The beam AB will fail if the maximum internal moment at D reaches Mmax or the normal force in member BC becomes Pmax. Determine the largest load w it can support. Given: Mmax = 800 N m Pmax = 1500 N...

The beam AB will fail if the maximum internal moment at D reaches 2 . 7 kN . m or the normal force in the member BC becomes 3 . 0 kN . Determine the largest concentrated force P it can support.

The beam Ab will fail if the maximum internal moment at D reaches 800 N ? m or the normal force in member BC becomes 1500 N. Determine the largest load w it can support. 4 m

The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N . m or the normal force in member BC becomes 6 k N . Determine the largest concentrated force P it can support

The beam AB will fail if the maximum internal moment at D reaches 4 . 5 0 kN . m or the normal force in member BC becomes 6 kN . Determine the largest concentrated force P it can support

4 - 5 . The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N * m or the normal force in member B C becomes 6 kN . Determine the largest concentrated force P it can support....
