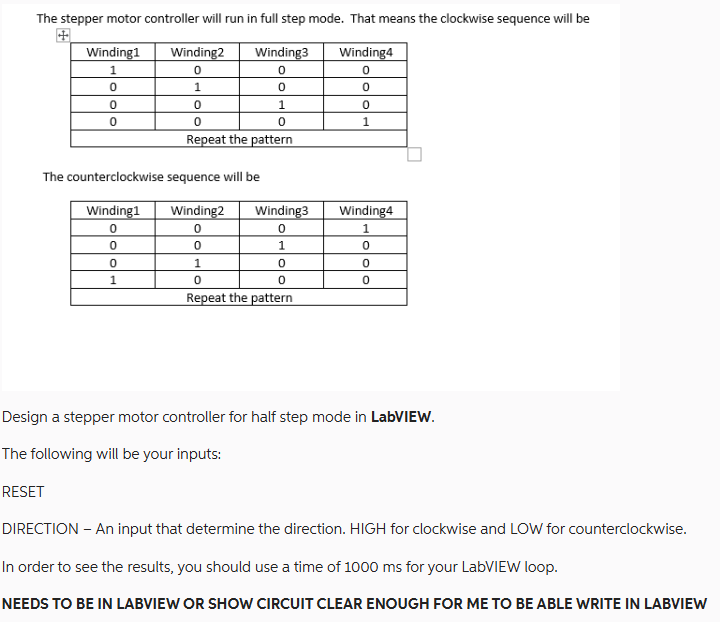

The stepper motor controller will run in full step mode. That means the clockwise sequence will be

The counterclockwise sequence will be

Design a stepper motor controller for half step mode in LabVIEW.

The following will be your inputs:

RESET

DIRECTION $-$ An input that determine the direction. HIGH for clockwise and LOW for counterclockwise.

In order to see the results, you should use a time of $1000$ ms for your LabVIEW loop.

NEEDS TO BE IN LABVIEW OR SHOW CIRCUIT CLEAR ENOUGH FOR ME TO BE ABLE WRITE IN LABVIEW
