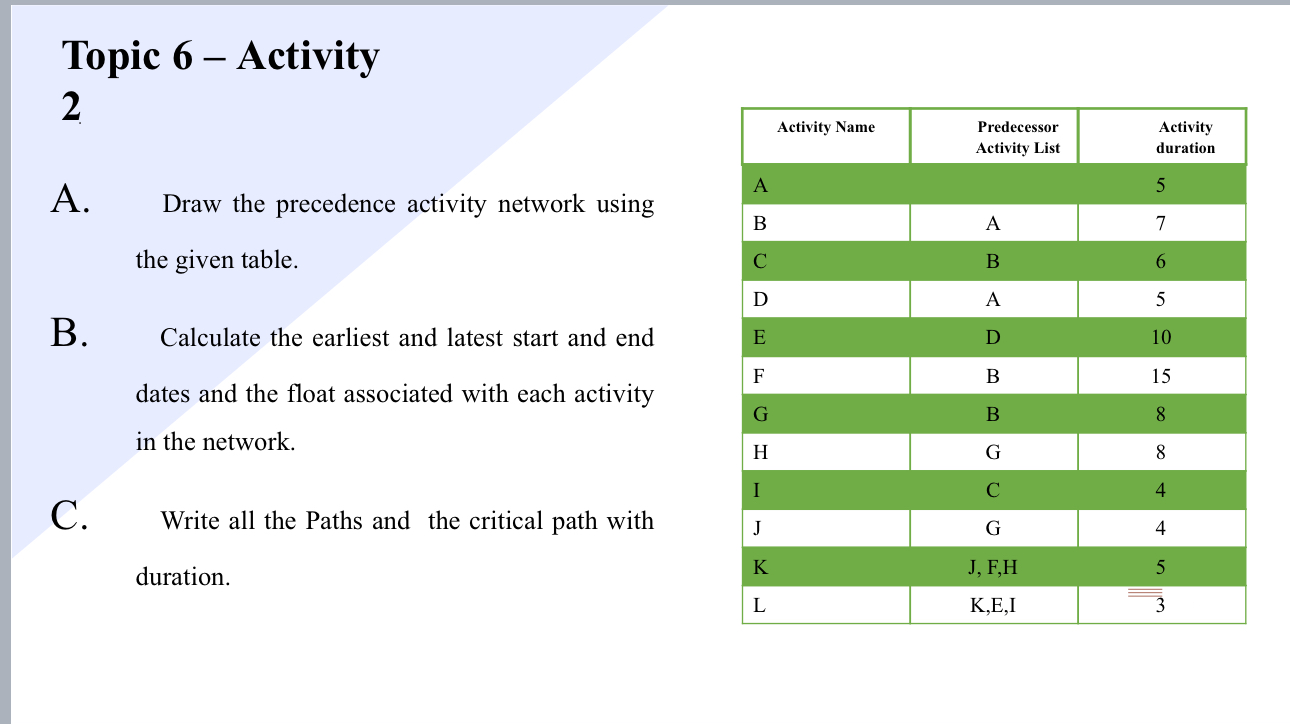

Topic $6-$ Activity

$2$

A$.$

Draw the precedence activity network using the given table.

B$.$ Calculate the earliest and latest start and end dates and the float associated with each activity in the network.

C$.$

Write all the Paths and the critical path with duration.

$\backslash$table$[[$Activity Name,$\backslash$table$[[$Predecessor$],[$Activity List$]],\backslash$table$[[$Activity$],[$duration$]]],[$A$,,5],[$B$,A,7],[C,$B$,6],[D,A,5],[$E$,D,10],[F,$B$,15],[$G$,$B$,8],[H,$G$,8],[$I$,C,4],[J,$G$,4],[$K$,J,F,H,5],[L,K,E,$I,$]]$
