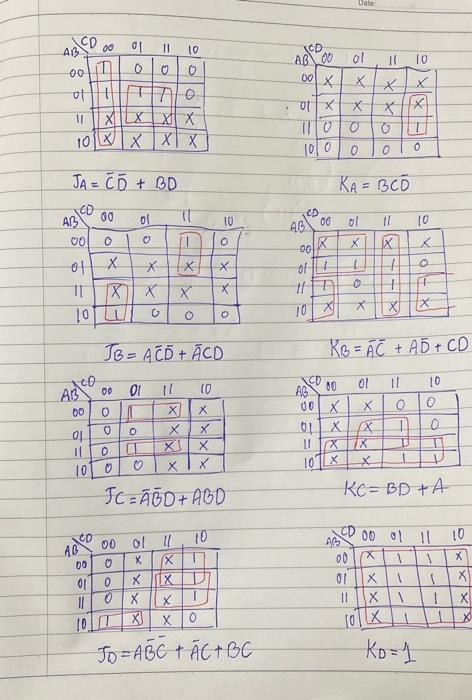

Question: using the following expressions, construct a 4-bit synchronous counter using JK-FF JA=CD+BDJB=ACD+ACDJC=ABD+ABDJD=ABC+AC+BCKA=BCDKB=AC+AD+CDKC=BD+AKD=1

using the following expressions, construct a 4-bit synchronous counter using JK-FF
using the following expressions, construct a 4-bit synchronous counter using JK-FF JA=CD+BDJB=ACD+ACDJC=ABD+ABDJD=ABC+AC+BCKA=BCDKB=AC+AD+CDKC=BD+AKD=1

JA=CD+BDJB=ACD+ACDJC=ABD+ABDJD=ABC+AC+BCKA=BCDKB=AC+AD+CDKC=BD+AKD=1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
