Question: Using the truth - table provided, create a logic gate that would implement the values listed. USE ONLY 2 - input OR , 2 -

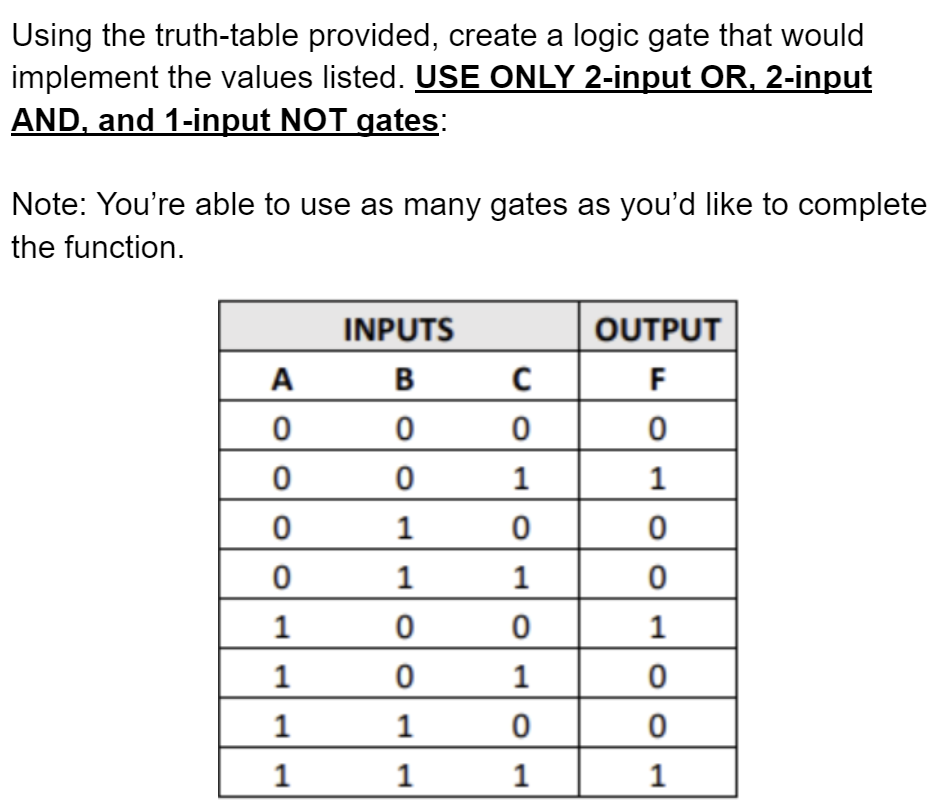

Using the truth-table provided, create a logic gate that would implement the values listed. USE ONLY 2-input OR,2-input AND, and 1-input NOT gates:
Note: You're able to use as many gates as you'd like to complete the function.
\table[[INPUTS,OUTPUT],[A,B,C,F],[0,0,0,0],[0,0,1,1],[0,1,0,0],[0,1,1,0],[1,0,0,1],[1,0,1,0],[1,1,0,0],[1,1,1,1]]
