Types: Process Oriented Layouts, Work Cells, Repetitive & Product Oriented LayoutsProcess charts: Charts that use symbols to analyse the movement of people or material.

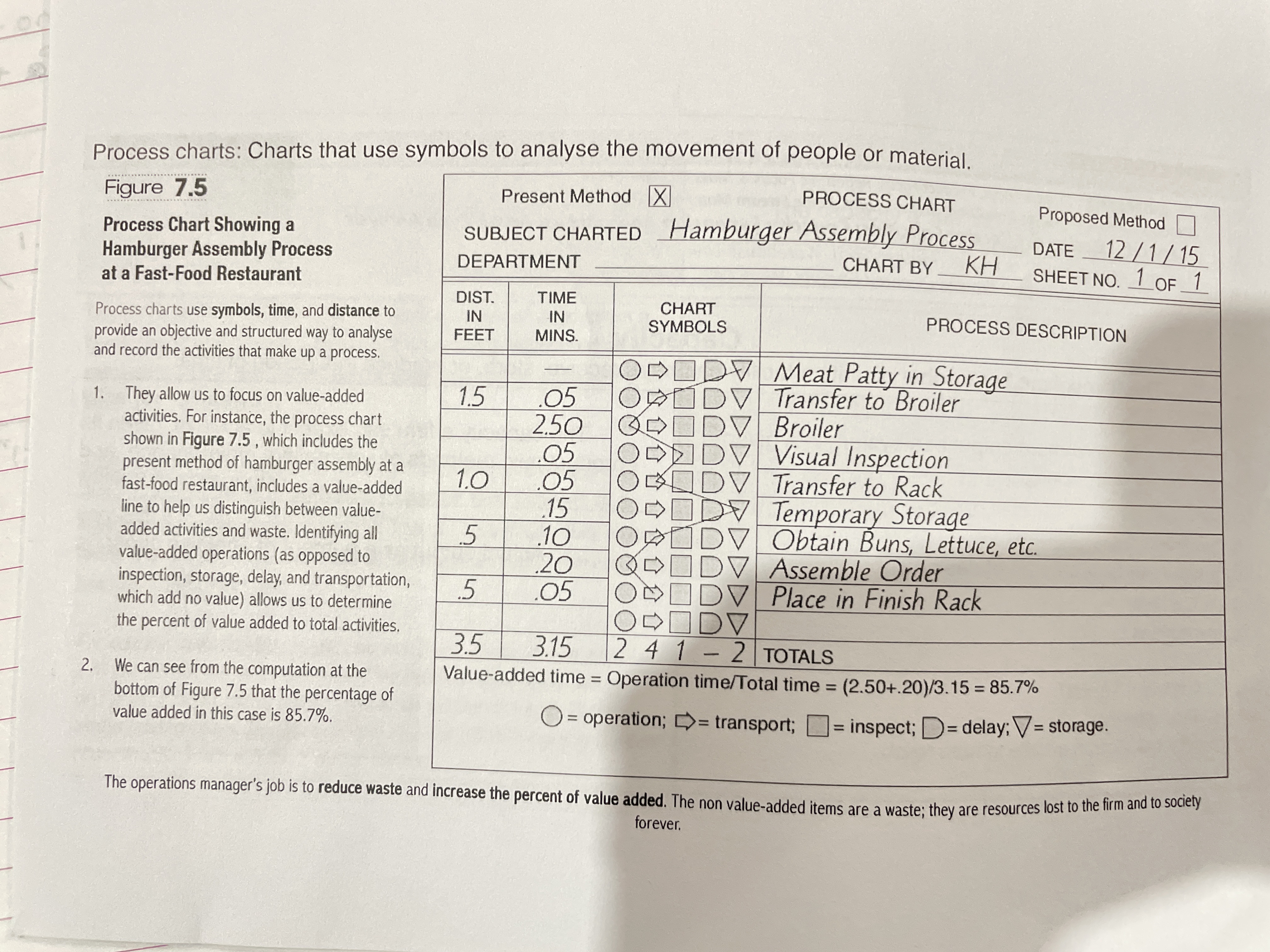

Figure $7\mathrm{.}5$

Process Chart Showing a

Hamburger Assembly Process

at a Fast$-$Food Restaurant

Process charts use symbols, time, and distance to

provide an objective and structured way to analyse

and record the activities that make up a process.

They allow us to focus on value$-$added

activities. For instance, the process chart

shown in Figure $7\mathrm{.}5,$ which includes the

present method of hamburger assembly at a

fast$-$food restaurant, includes a value$-$added

line to help us distinguish between value$-$

added activities and waste. Identifying all

value$-$added operations $($as opposed to

n$,$

Sketch Process Chart for any of Manufacturing related Business. Propely label it for better understand
