Question: We wish to create a recursive filter with impulse response given in the attached. A . Determine the magnitude frequency response for this filter. No

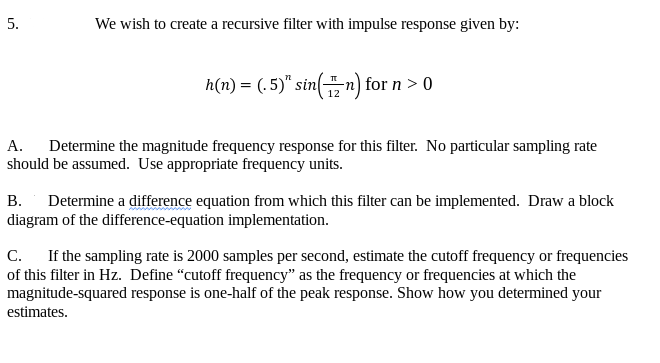

We wish to create a recursive filter with impulse response given in the attached.
A. Determine the magnitude frequency response for this filter. No particular sampling rate should be assumed. Use appropriate frequency units.
B. Determine a difference equation from which this filter can be implemented. Draw a block diagram of the difference-equation implementation.
C. If the sampling rate is 2000 samples per second, estimate the cutoff frequency or frequencies of this filter in Hz. Define cutoff frequency as the frequency or frequencies at which the magnitude-squared response is one-half of the peak response. Show how you determined your estimates.
We wish to create a recursive filter with impulse

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
