Question: Activity A Prodecessor Duration in Weeks 2 A 3 B 2 D B 3 4 E F G H 1 D B D Draw the

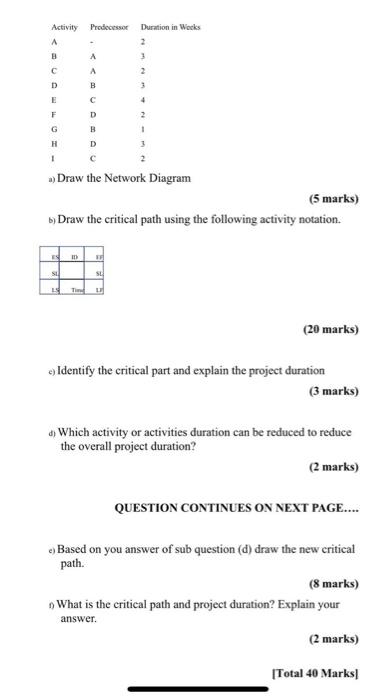

Activity A Prodecessor Duration in Weeks 2 A 3 B 2 D B 3 4 E F G H 1 D B D Draw the Network Diagram (5 marks) b) Draw the critical path using the following activity notation. SU SL (20 marks) c) Identify the critical part and explain the project duration (3 marks) Which activity or activities duration can be reduced to reduce the overall project duration? (2 marks) QUESTION CONTINUES ON NEXT PAGE.... c) Based on you answer of sub question (d) draw the new critical path. (8 marks) What is the critical path and project duration? Explain your answer. (2 marks) [Total 40 Marks
