Question: Based on the below network diagram, identify the total paths, critical path, and float for each path. Calculate Early Start, Early Finish, Late Start, and

Based on the below network diagram, identify the total paths, critical path, and float for each path. Calculate Early Start, Early Finish, Late Start, and Late Finish.

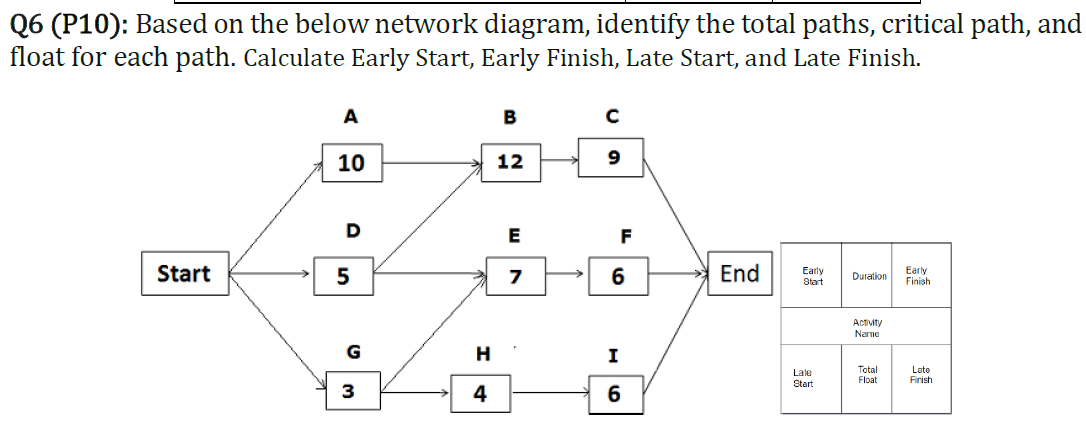

Q6 (P10): Based on the below network diagram, identify the total paths, critical path, and float for each path. Calculate Early Start, Early Finish, Late Start, and Late Finish. B 10 12 9 D E F Start 5 Early 7 6 End Early Start Duration Finish Activity Narne I Lale Start Total Float Lato Finish 3 4 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Compare the projects given below with the annual equivalent cost method. Q6 (P10): Based on the below network diagram, identify the total paths, critical path, and float for each path. Calculate...

Based on the below network diagram, identify the total paths, critical path, and float for each path. Calculate Early Start, Early Finish, Late Start, and Late Finish. D 12 weeks 4 weeks END E 7...

QUESTION 4: (25 MARKS) Use the network diagram below: 3.1. Identify the Critical Path. 3.2. Calculate the Early Start; Late Start; Early Finish & Late Finish for all activities. 3.3 Compute the slack...

Using the information from a project below: Activity Predecessor Duration (Days) A - 10 B - 9 C - 13 D A;B 15 E B;C 17 F D;E 18 G F 10 1 Construct the network diagram (AON) and identify the Critical...

Using the information from a project below: Activity Predecessor A B C D E F G 3.1 3.2 3.3 A;B B;C D;E F Duration (Days) 10 9 13 15 17 18 10 Construct the network diagram (AON) and identify the...

Using the information from a project below: 3.1 Construct the network diagram (AON) and identify the Critical Path. 3.2 Calculate the Early Start; Late Start; Early Finish \& Late Finish for all...

Immersive Reader Activity Description Immediate Time(Week) predecessors A Select site office 3 B Create a plan C Determine personnel B requirements D Design facility A, C 4 E Construct interior D 8 F...

Dimmersive de Activity Description Immediate predecessors Time Week) 3 A ww B 3 4 w E F G Select site office Create a plan Determine personnel requirements Design facility Construct Interior Select...

mm Reader Om Activity Description Immediate predecessors Time Week) A B mm 3 5 3 B OUI E F G H 1 1 Select site office Create a plan Determine personnel requirements Design facility Construct interior...

B show all your calculation Activity Description Immediate Time(Week) predecessors A Select site office 3 B Create a plan 5 C Determine personnel B 3 requirements D Design facility A, C 4 E Construct...
