Question: QUESTION 4: (25 MARKS) Use the network diagram below: 3.1. Identify the Critical Path. 3.2. Calculate the Early Start; Late Start; Early Finish & Late

QUESTION 4: (25 MARKS)

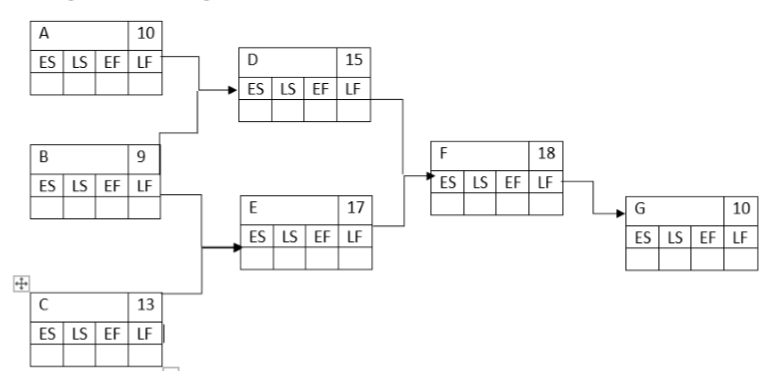

Use the network diagram below:

QUESTION 4: (25 MARKS) Use the network diagram

3.1. Identify the Critical Path.

3.2. Calculate the Early Start; Late Start; Early Finish & Late Finish for all activities.

3.3 Compute the slack time for each activity.

10 ES LS EF LF D 15 ES LS EF LF 18 B 9 ES LS EF LF F ES LSEF LF 17 G 10 E ES LS EF LF ESLS EF LF 13 ES LS EF LF
