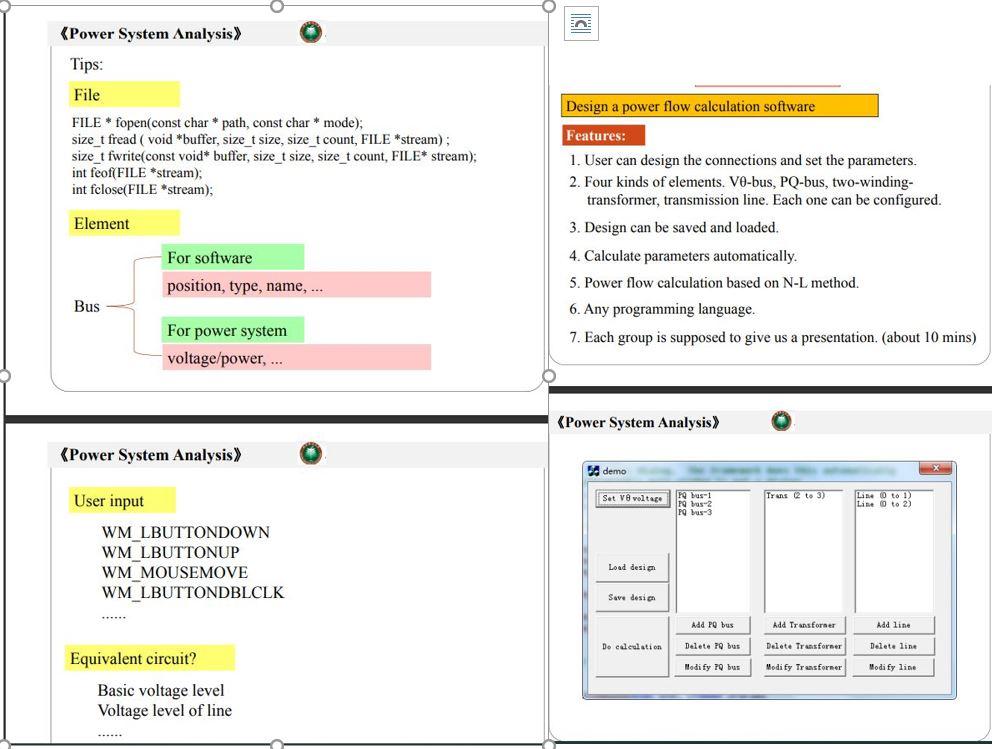

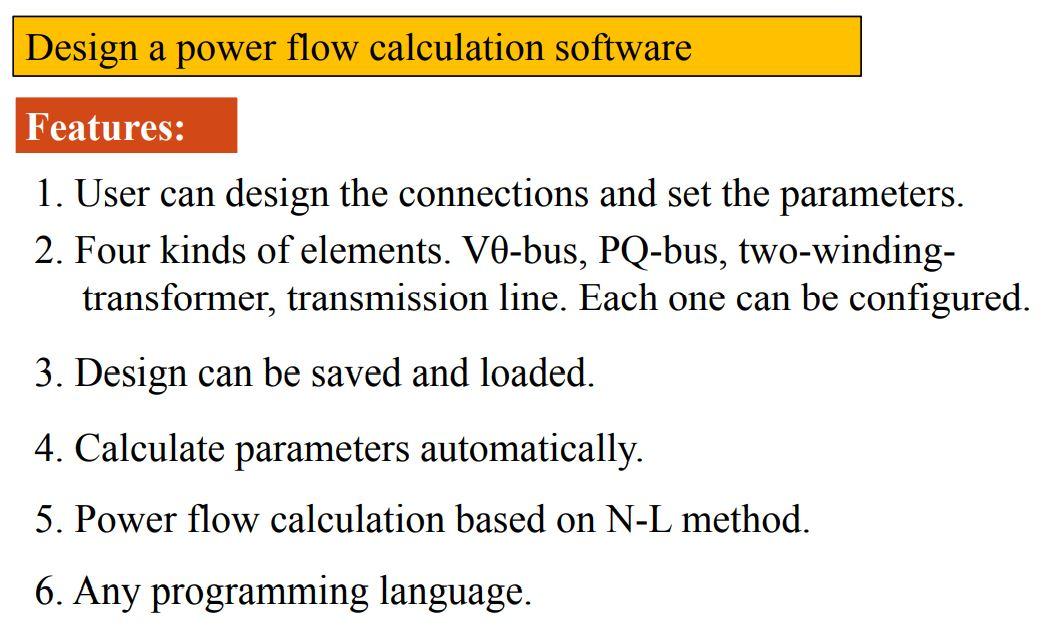

CI (Power System Analysis Tips: Design a power flow calculation software File FILE * fopen(const char * path, const char * mode); size_t fread ( void *buffer, size_t size, size_t count, FILE *stream); size t fwrite(const void* buffer, size_t size, size_t count, FILE* stream): int feof(FILE *stream); int fclose(FILE *stream); Element Features: 1. User can design the connections and set the parameters. 2. Four kinds of elements. Ve-bus, PQ-bus, two-winding- transformer, transmission line. Each one can be configured. 3. Design can be saved and loaded. 4. Calculate parameters automatically. 5. Power flow calculation based on N-L method 6. Any programming language. 7. Each group is supposed to give us a presentation. (about 10 mins) For software position, type, name,... Bus For power system voltage/power, ... (Power System Analysis) (Power System Analysis A demo User input Set Ve voltage Trans 2 to 3) PQ bus-1 PO bos2 PO bus-3 Lise 0 to 1 Lise to 2) WM LBUTTONDOWN WM LBUTTONUP WM MOUSEMOVE WM_LBUTTONDBLCLK Load desia Sare design Add PO bus Add Transformer Add line Do edelation Delete O bus Delete Transformer Delete line Modify 79 bus Modify Transformer Modify line Equivalent circuit? Basic voltage level Voltage level of line Design a power flow calculation software Features: 1. User can design the connections and set the parameters. 2. Four kinds of elements. Ve-bus, PQ-bus, two-winding- transformer, transmission line. Each one can be configured. 3. Design can be saved and loaded. 4. Calculate parameters automatically. 5. Power flow calculation based on N-L method. 6. Any programming language. CI (Power System Analysis Tips: Design a power flow calculation software File FILE * fopen(const char * path, const char * mode); size_t fread ( void *buffer, size_t size, size_t count, FILE *stream); size t fwrite(const void* buffer, size_t size, size_t count, FILE* stream): int feof(FILE *stream); int fclose(FILE *stream); Element Features: 1. User can design the connections and set the parameters. 2. Four kinds of elements. Ve-bus, PQ-bus, two-winding- transformer, transmission line. Each one can be configured. 3. Design can be saved and loaded. 4. Calculate parameters automatically. 5. Power flow calculation based on N-L method 6. Any programming language. 7. Each group is supposed to give us a presentation. (about 10 mins) For software position, type, name,... Bus For power system voltage/power, ... (Power System Analysis) (Power System Analysis A demo User input Set Ve voltage Trans 2 to 3) PQ bus-1 PO bos2 PO bus-3 Lise 0 to 1 Lise to 2) WM LBUTTONDOWN WM LBUTTONUP WM MOUSEMOVE WM_LBUTTONDBLCLK Load desia Sare design Add PO bus Add Transformer Add line Do edelation Delete O bus Delete Transformer Delete line Modify 79 bus Modify Transformer Modify line Equivalent circuit? Basic voltage level Voltage level of line Design a power flow calculation software Features: 1. User can design the connections and set the parameters. 2. Four kinds of elements. Ve-bus, PQ-bus, two-winding- transformer, transmission line. Each one can be configured. 3. Design can be saved and loaded. 4. Calculate parameters automatically. 5. Power flow calculation based on N-L method. 6. Any programming language
